Removing the Processor Heat-Sink Fan
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
"Before You Begin" on page 11. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover. See "Removing the Base Cover" on page 14.
2 Remove the battery pack. See "Removing the Battery Pack" on page 16.
3 Remove the fans cover. See "Removing the Fans Cover" on page 29.
Procedure
1 Disconnect the processor heat-sink fan cable from its connector on the system
board.
2 Loosen the captive screws that secure the processor heat-sink fan to the computer
base.
3 Lift the processor heat-sink fan along with the cable away from the computer base.

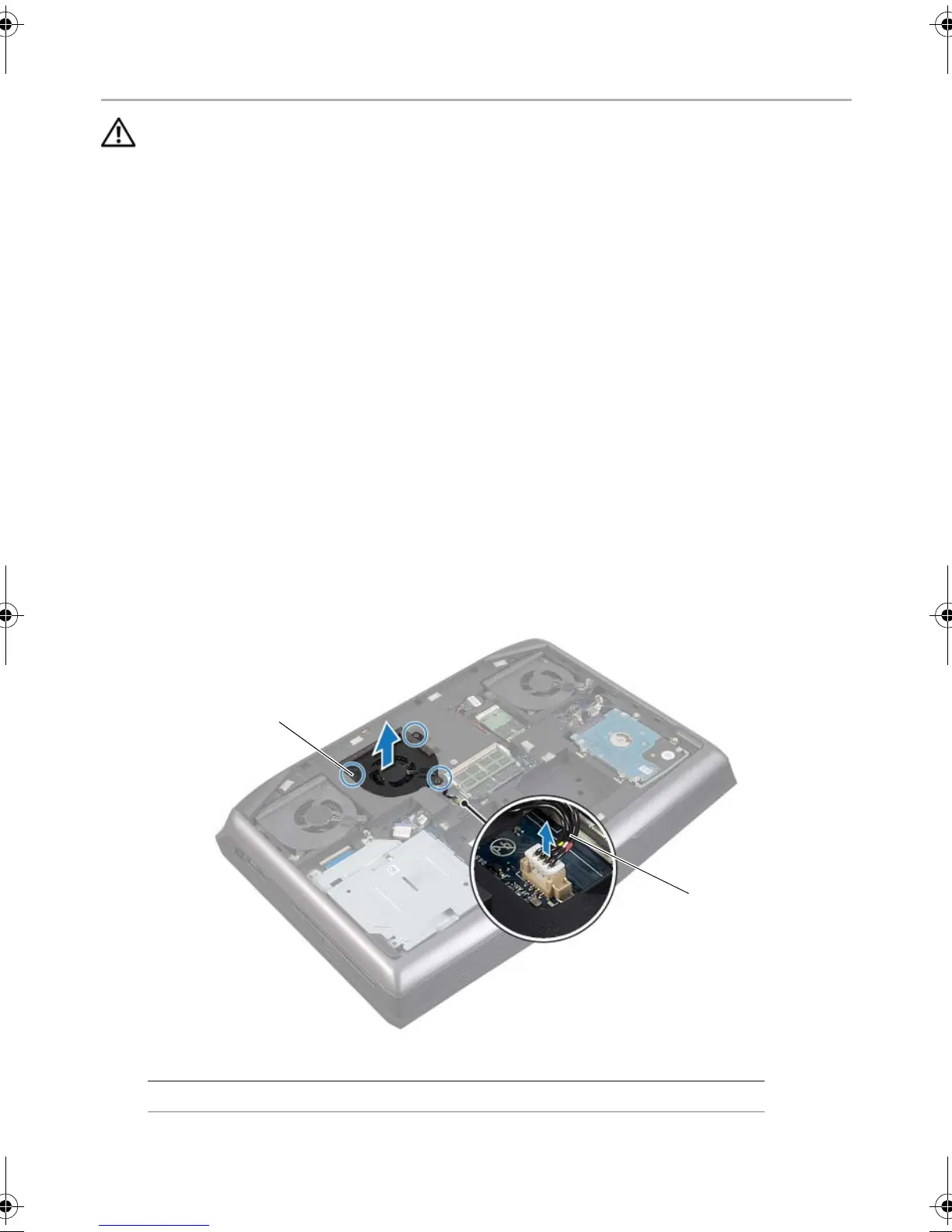

1 captive screws (3) 2 processor heat-sink fan cable
