Removing the Keyboard | 51
Procedure
1 Remove the screws that secure the keyboard-bracket to the keyboard.
CAUTION: The keycaps on the keyboard are fragile, easily dislodged,
and time-consuming to replace. Be careful when removing and
handling the keyboard.
CAUTION: Be extremely careful when removing and handling the
keyboard. Failure to do so could result in scratching the display
panel.Lift the connector latches and pull the pull-tabs to disconnect
the media-card reader cable and the keyboard-backlight cable from
the respective connectors.
2 Lift the keyboard bracket off the keyboard.

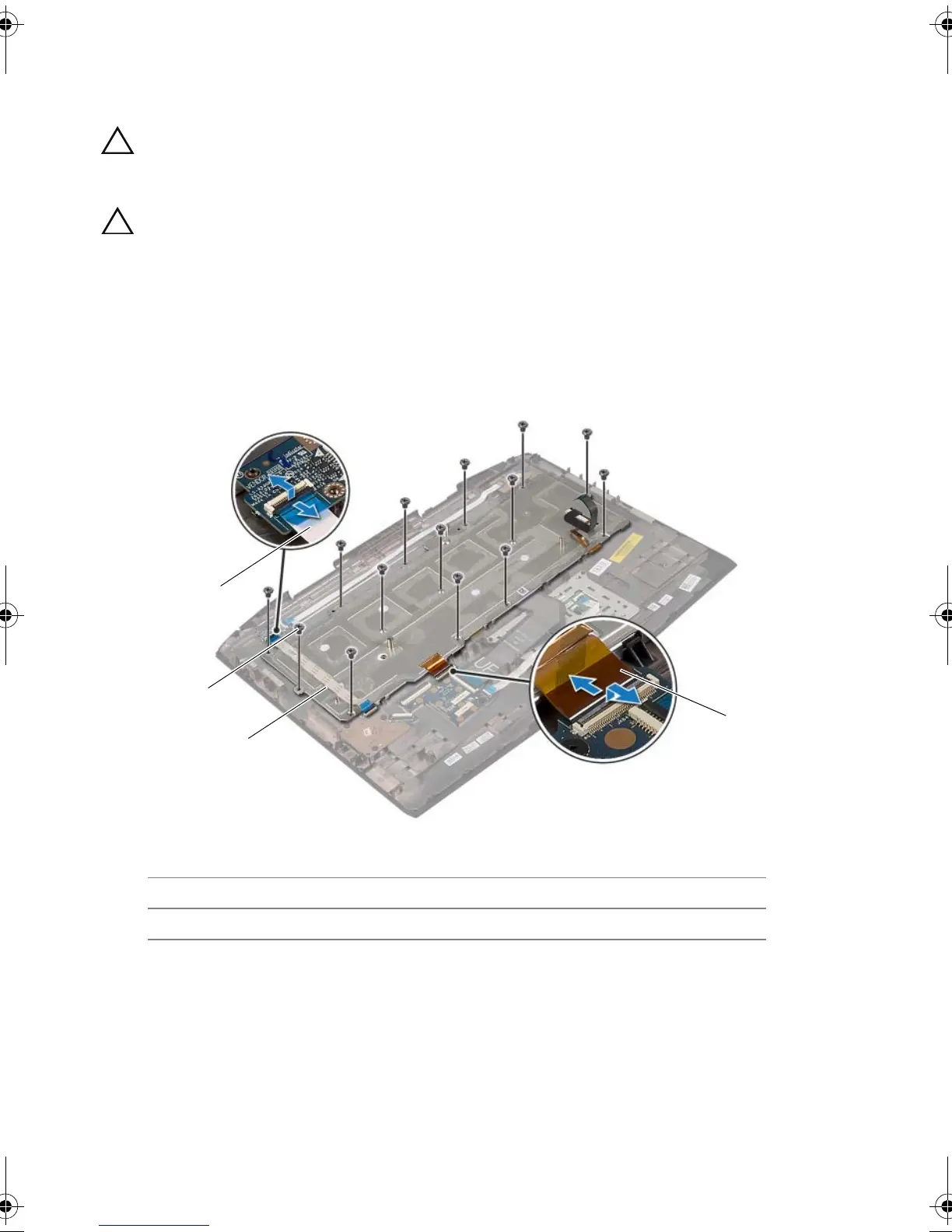

1 keyboard-backlight cable 2 keyboard bracket
3 screws (14) 4 media-card reader cable
