Removing the Subwoofer | 83
Procedure
1 Disconnect the subwoofer cable from its connector on the system board.
2 Note the subwoofer-cable routing and remove the cable from the routing guides on
the computer base.
3 Loosen the captive screws that secure the subwoofer to the computer base.
4 Lift the subwoofer, along with the subwoofer cable, off the computer base.

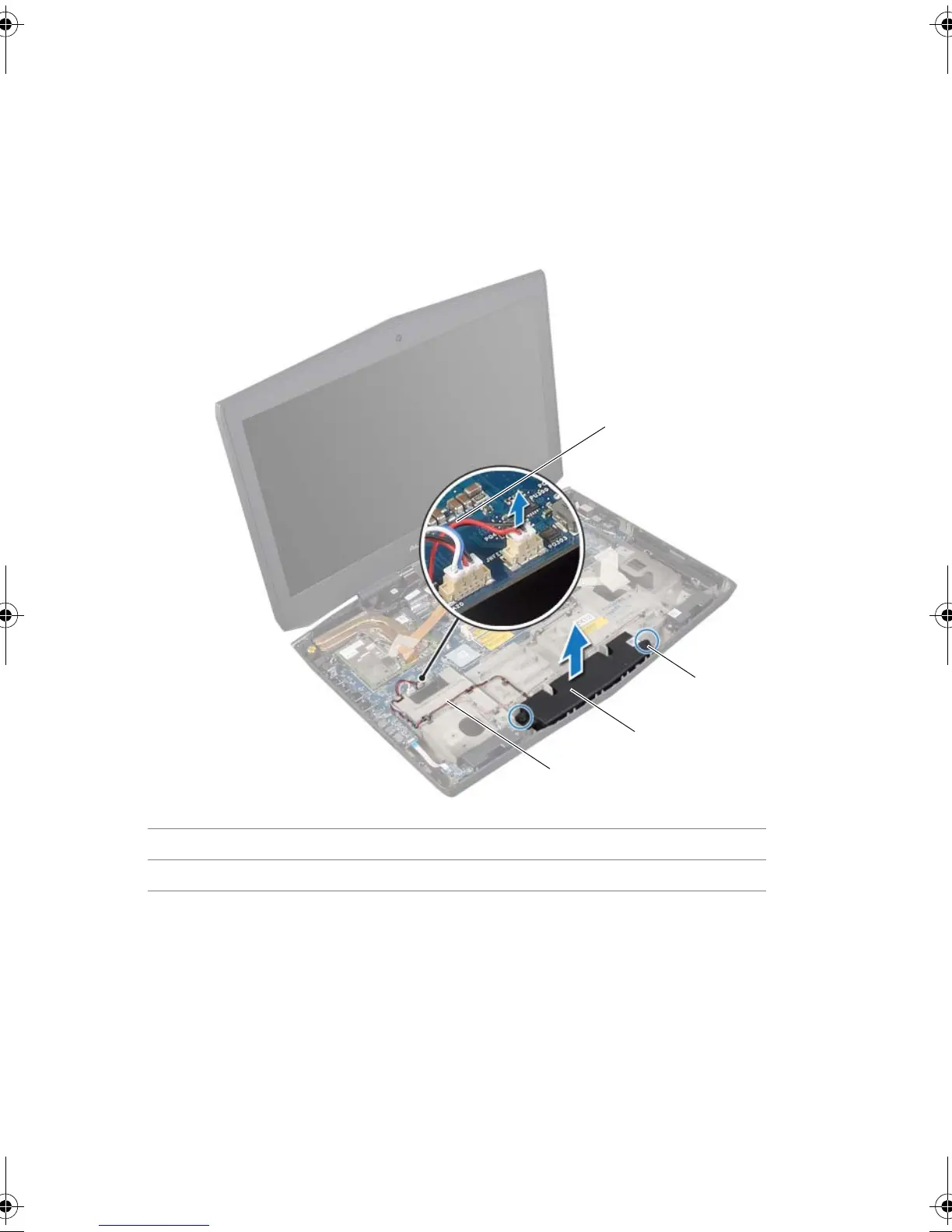

1 subwoofer cable 2 captive screws (2)
3 subwoofer 4 subwoofer-cable routing
