74 | Removing the Logo Board
Procedure
1 Remove the screws that secure the logo board to the display back-cover.
2 Carefully rotate the logo board over and disconnect the display-light board cables
from the connectors on the logo board.
3 Lift the logo board off the display back-cover.

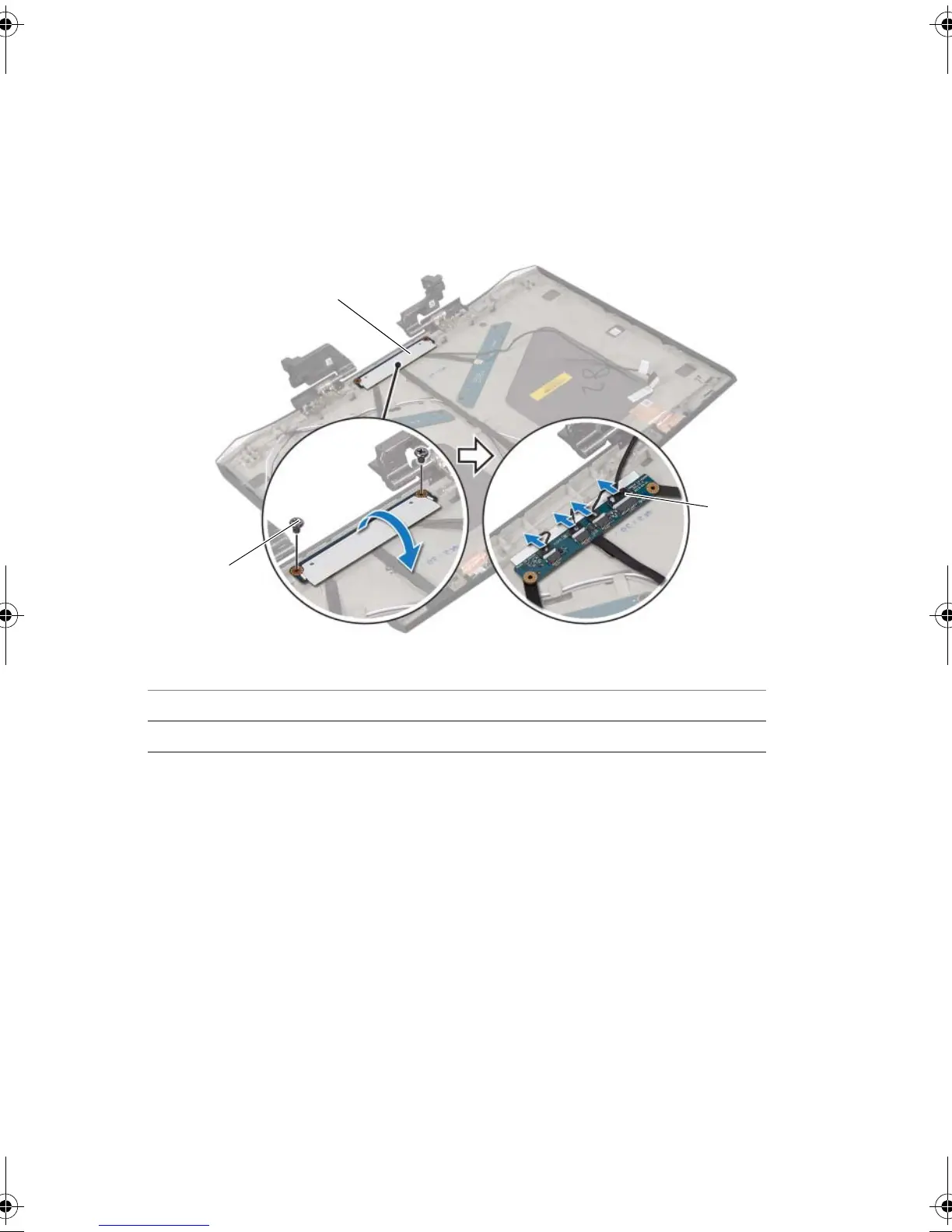

1 screws (2) 2 logo board
3 display-light board cables (4)
