Dell D02X

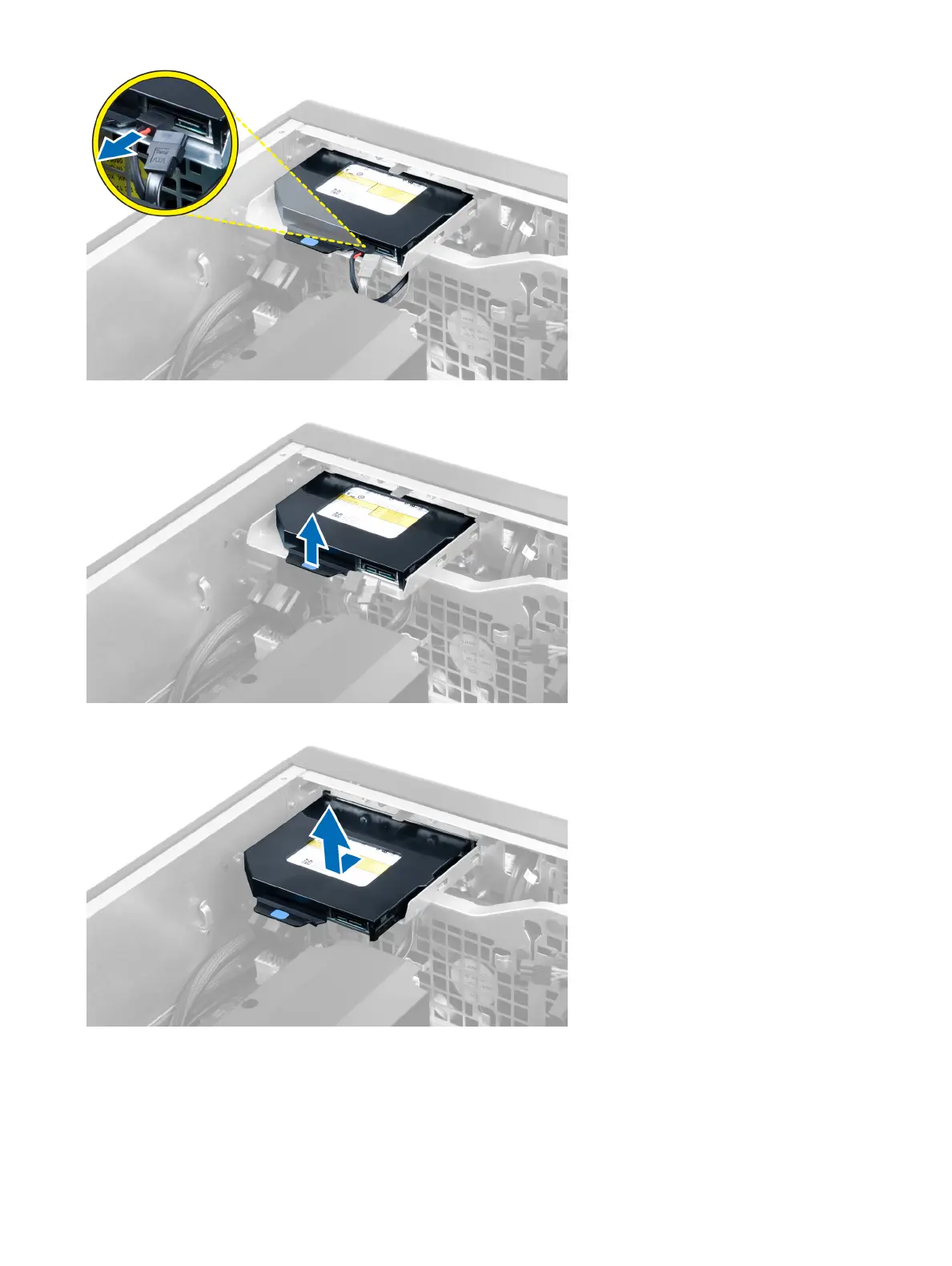

5 Pull up the blue release tab to release the latches that secure the optical drive.
6 Slide the optical drive out of its compartment and lift it up to remove it from the computer.
7 Flex the optical-drive bracket latches in an outward direction to loosen the optical drive from the bracket.
18
Removing and installing components
