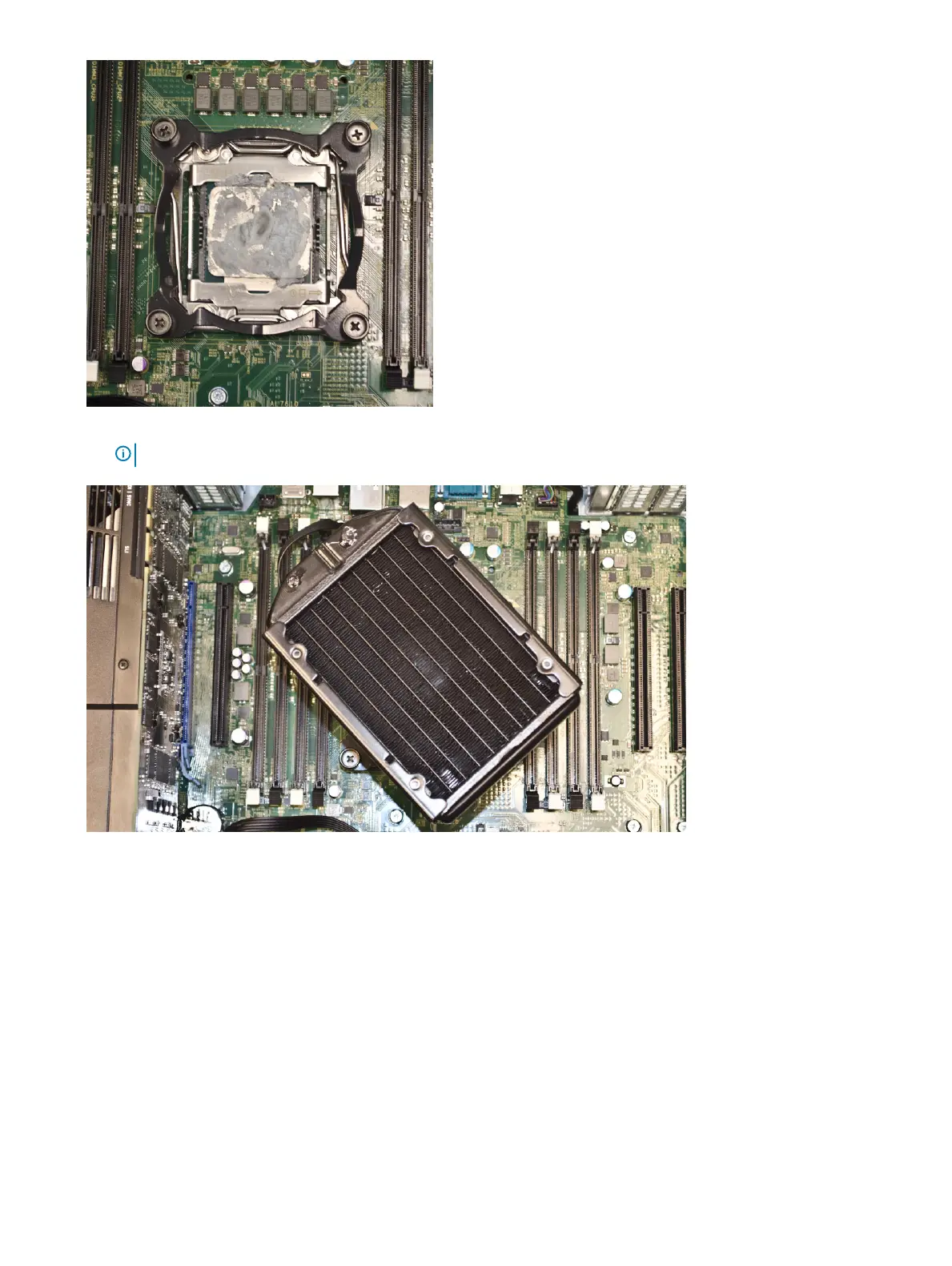

3 Place the liquid cooler onto the bracket at 45 degree rotation.
NOTE: The tabs on the bottom of the heatsink must align with the bracket.
4 Connect the heatsink fan cable to the system board.
