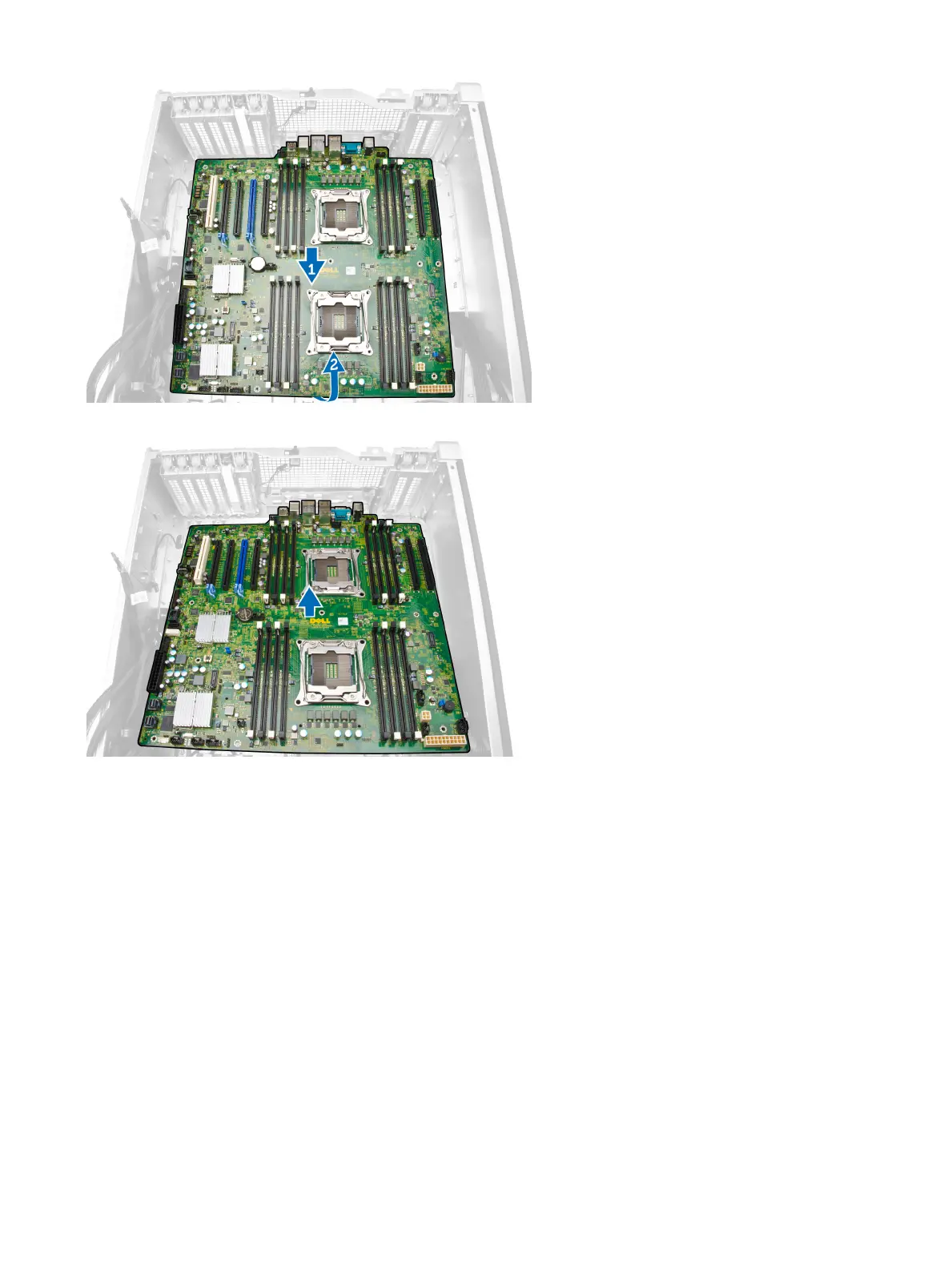

b Tilt the system board [2].
6 Lift the system board in an upward direction and remove it from the computer.
Installing the System Board
1 Align the system board to the port connectors on the back of the chassis and place the system board in the chassis.
2 Tighten the screws that secure the system board to the chassis.
3 Connect the connectors to the system board.
4 Install the:
a processor
b memory module(s)
c PCIe card retention
d PCIe card(s)
e heatsink
f memory shroud base
g memory shrouds
h optical drive holder
i optical drive
j left cover
5 Follow the procedures in After Working Inside Your Computer.
50
Removing and installing components
