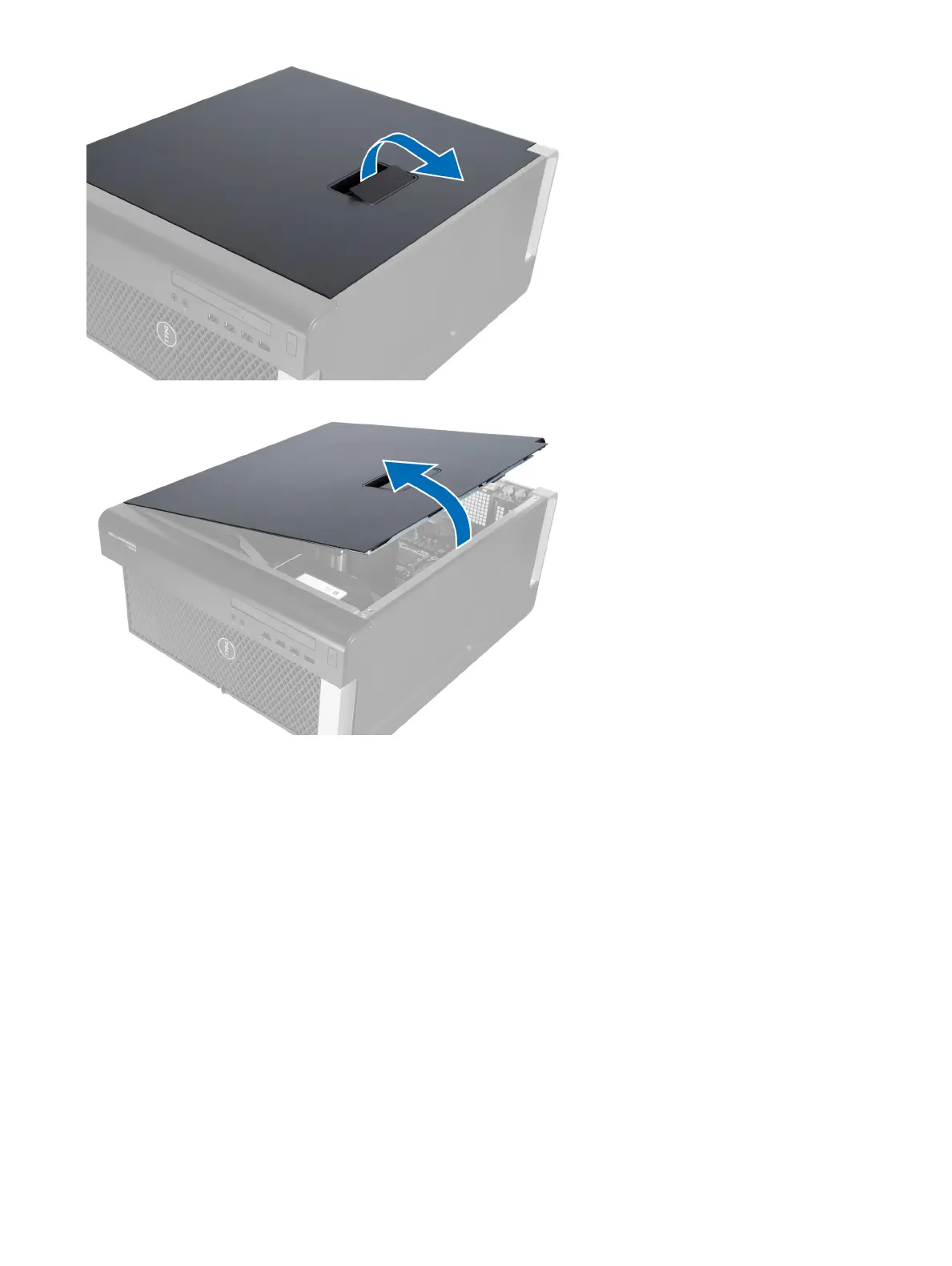

3 Lift the cover upward to a 45–degree angle and remove it from the computer.
Installing the Left Cover
1 Place the computer cover on the chassis.
2 Press down on the cover till it clicks into place.
3 Follow the procedures in After Working Inside Your Computer.
Removing the Intrusion Switch
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove:
a left cover
b memory shroud
3 Perform the following steps as shown in the illustration:
a Press the intrusion switch release latch and disconnect the connector from the system board [1,2].
b Unroute the intrusion switch cable from the chassis [3].
c Push the intrusion switch downwards and remove it from the computer [4].
