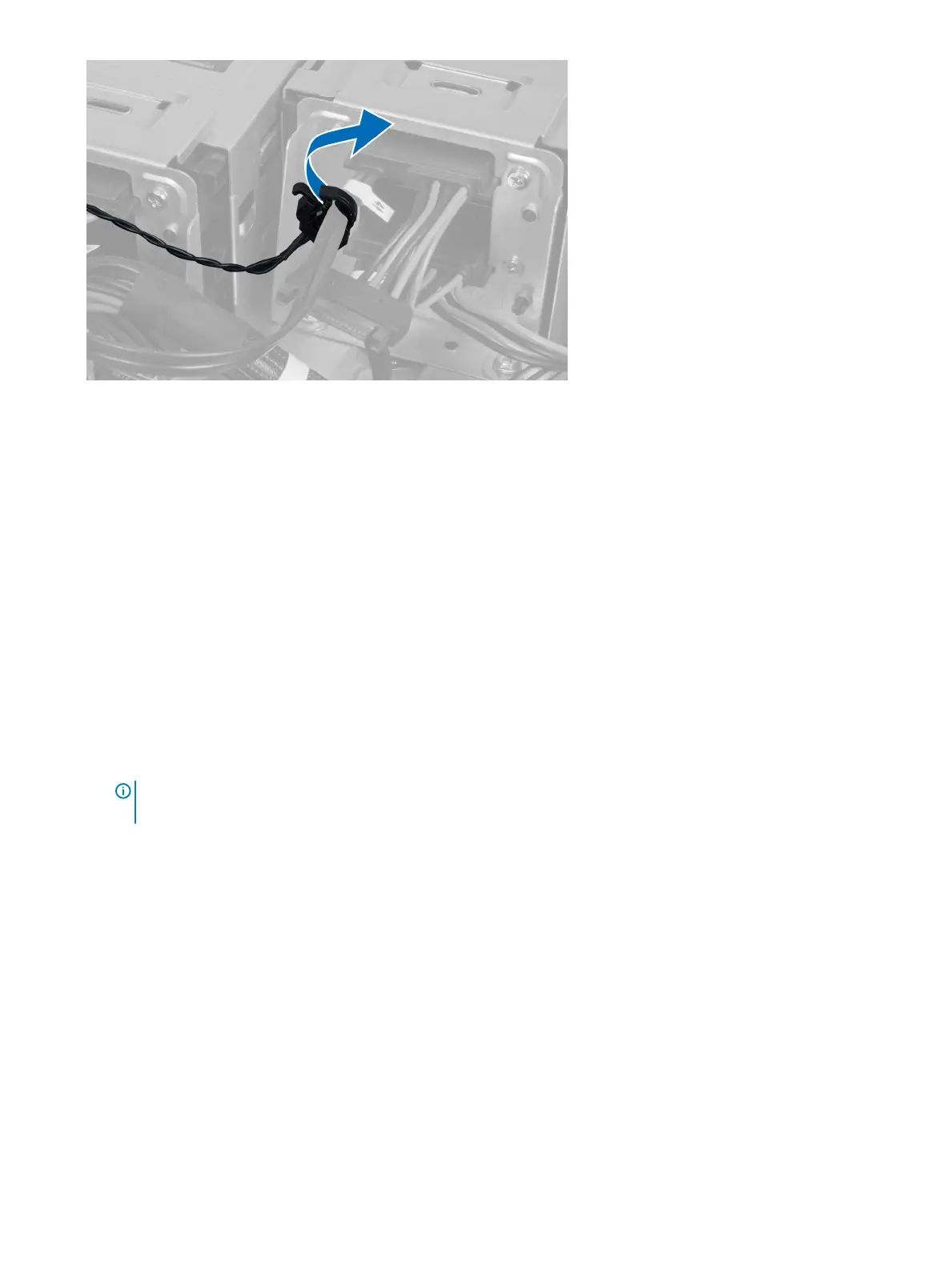

Installing the HDD Thermal Sensor
1 Install the HDD thermal-sensor cable on the system board.
2 Route the HDD thermal-sensor cable around the computer chassis.
3 Fasten the latch that secures the HDD thermal-sensor cable.
4 Install:
a right cover
b left cover
5 Follow the procedures in After Working Inside Your Computer.
Removing the Processor
1 Follow the procedures inBefore Working Inside Your Computer.
2 Remove:
a left cover
b heatsink
3 To remove the processor:
NOTE
: The processor cover is secured by two levers. They have icons that indicate which lever needs to be opened rst
and which lever closes rst.
a Press down on the rst lever holding the processor cover in place and release it sideways from its retention hook [1].
b Repeat step 'a' to release the second lever from its retention hook [2].
c Lift up the lever from its retention hook [3].
d Press down on the rst lever [4].
e Lift up and remove the processor cover [5].
f Lift the processor to remove it from the socket and place it in antistatic package [6].
44
Removing and installing components
