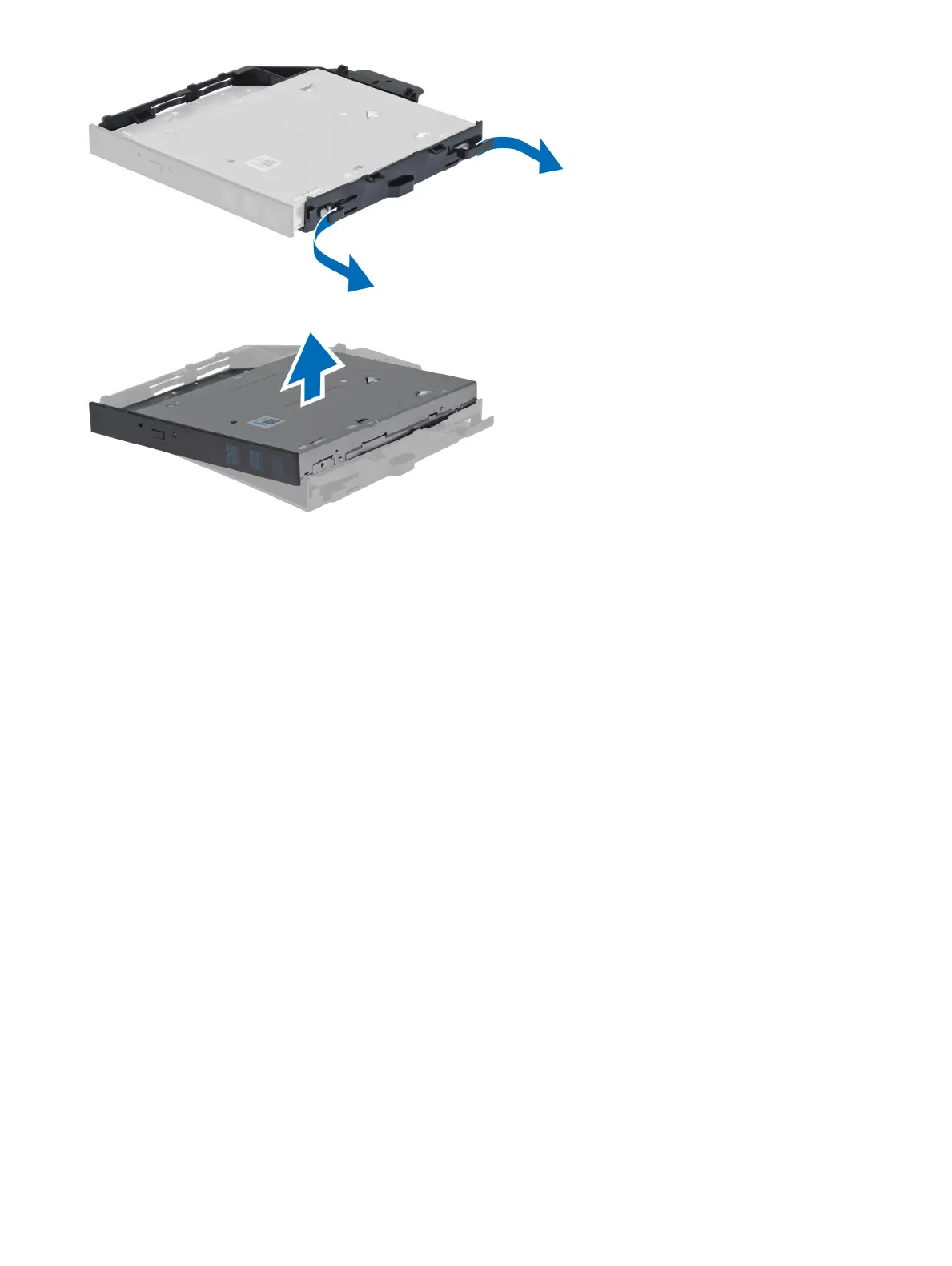

8 Lift the optical drive and remove it from the bracket.
Installing the Slimline Optical Drive
1 Slide the optical drive into its compartment and ensure it is seated rmly.
2 Connect the power cable and the data cable to the back of the optical drive.
3 Install the left cover.
4 Follow the procedures in After Working Inside Your Computer.
Removing the Memory Shroud
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove:
a left cover
b optical drive
3 Press down on the blue retaining tabs on each side of the memory shroud and lift the memory shroud upwards.
Removing and installing components
19
