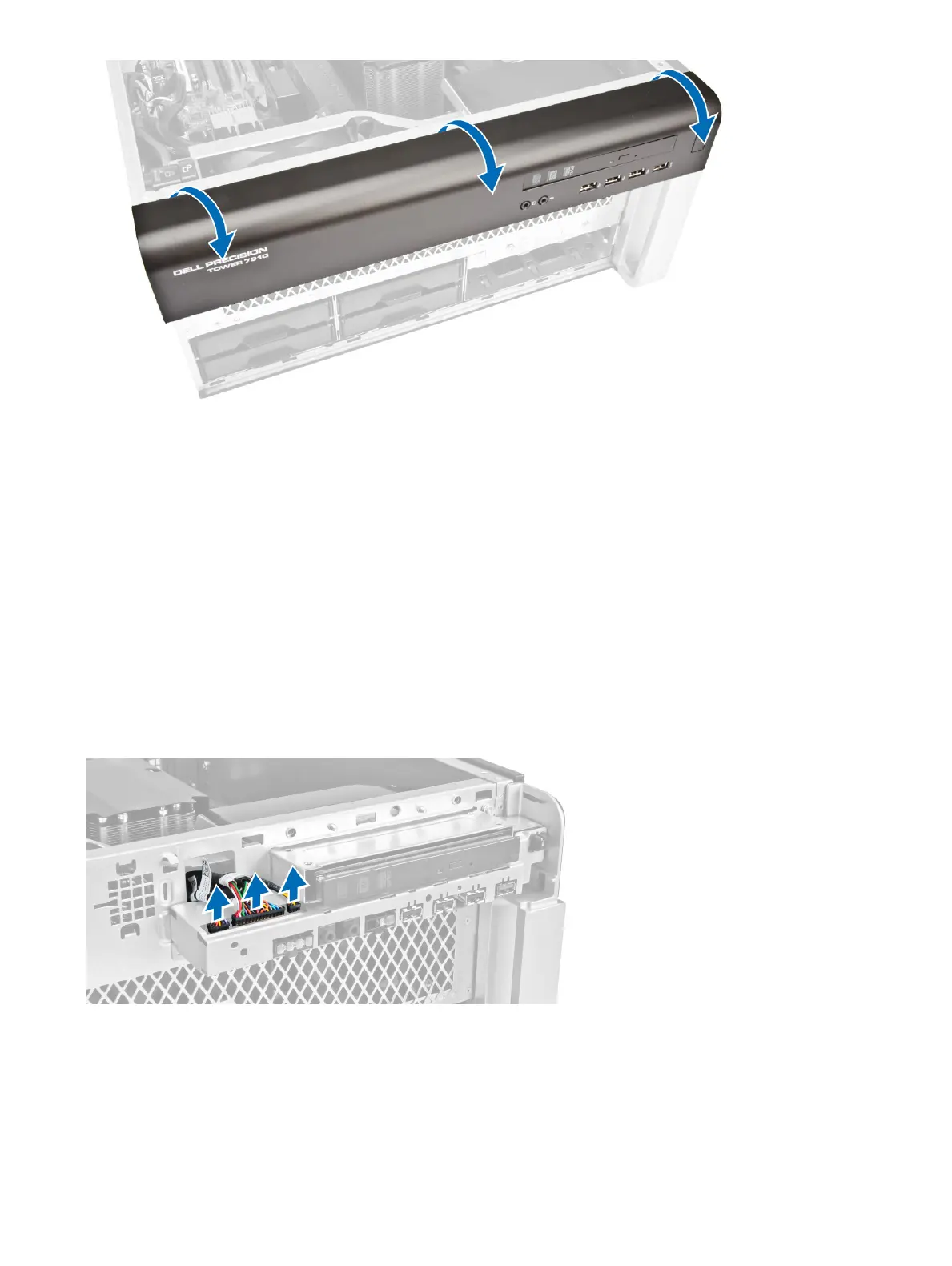

Installing the Front Bezel
1 Insert the hooks along the bottom edge of the front panel into the slots on the chassis front.
2 Rotate the bezel towards the computer to engage the front-bezel retention clips until they click into place.
3 Install the left cover.
4 Follow the procedures in After Working Inside Your Computer.
Removing the I/O Panel and the USB 3.0 Ports
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove:
a front bezel
b left cover
c front cover
3 Disconnect all the cables from the I/O panel.
4 Remove the screws that secure the I/O panel assembly to the computer chassis.
36
Removing and installing components
