Installing the System-Fan Assembly
1 Tighten the grommets that secure the system fan to the system-fan module.
2 Connect the system-fan cable to the system-fan module.
3 Install the screws that secure the system-fan module to the chassis.
4 Route the system-fan cables out of the opening in the system-fan module in the direction of the system board.
5 Connect the system-fan and internal speaker cables to their connectors on the system board.
6 Slide the memory shroud retention modules downwards into the retention tabs until they are secured to the system-fan module.
7 Install the screws that secure the optical-drive bracket to the chassis.
8 Install:
a memory shroud
b PCIe card retention
c optical drive
d left cover
9 Follow the procedures in After Working Inside Your Computer.
Removing the Front Bezel
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove the left cover.

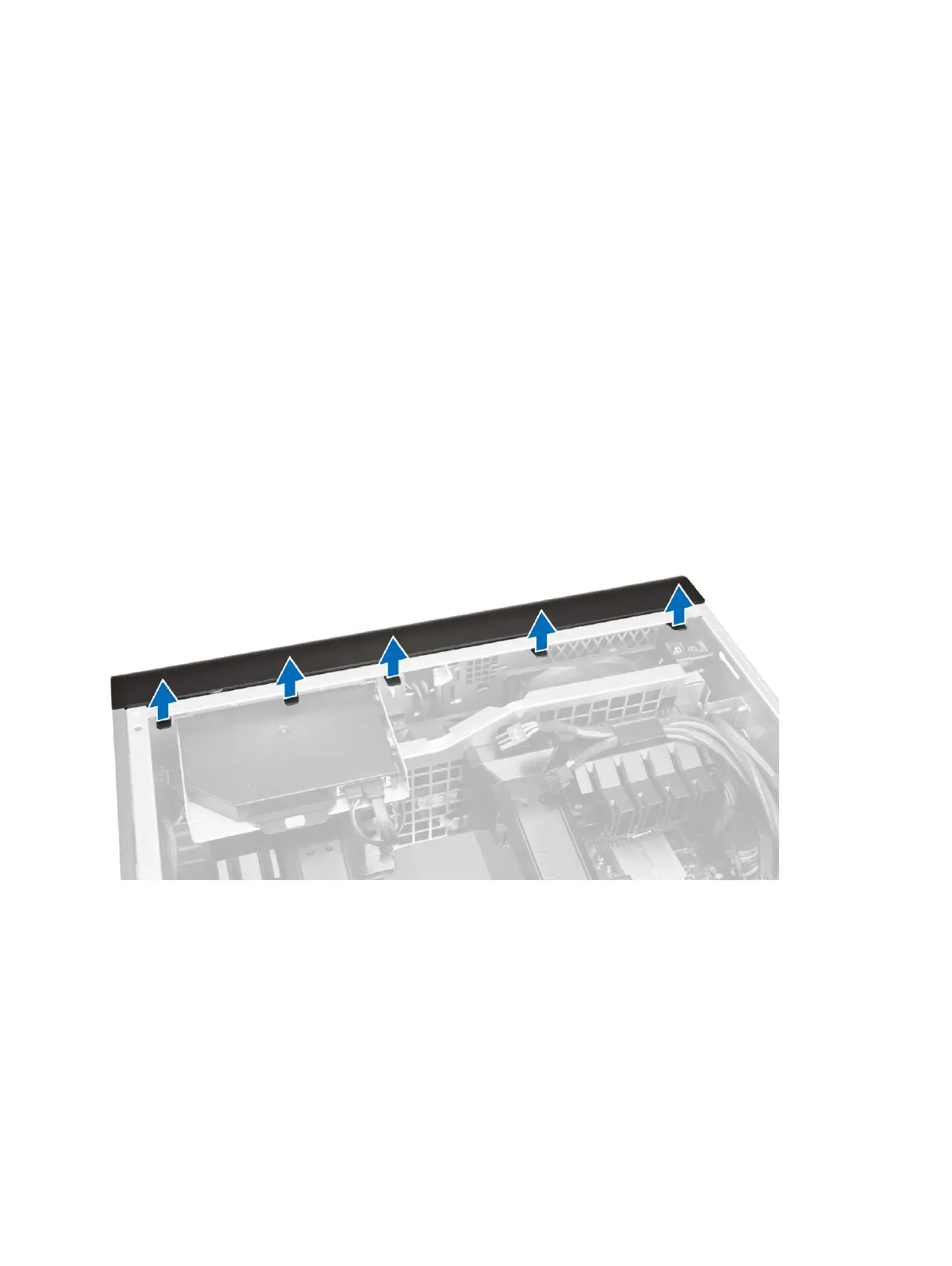

3 Pry the front bezel retention clips away from the chassis located at the edge of front bezel.
4 Rotate and pull the bezel panel away from the computer to release the hooks on the opposite edge of the bezel from the chassis.
Removing and installing components
35
