Installing the Memory Shroud
1 Install the memory shroud base inside the computer chassis.
2 Mount the memory shroud module on the base and press downwards until it clicks into place.
3 Install:
a optical drive
b left cover
4 Follow the procedures in After Working Inside Your Computer.
Removing the Memory
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove:
a left cover
b optical drive
c memory shroud

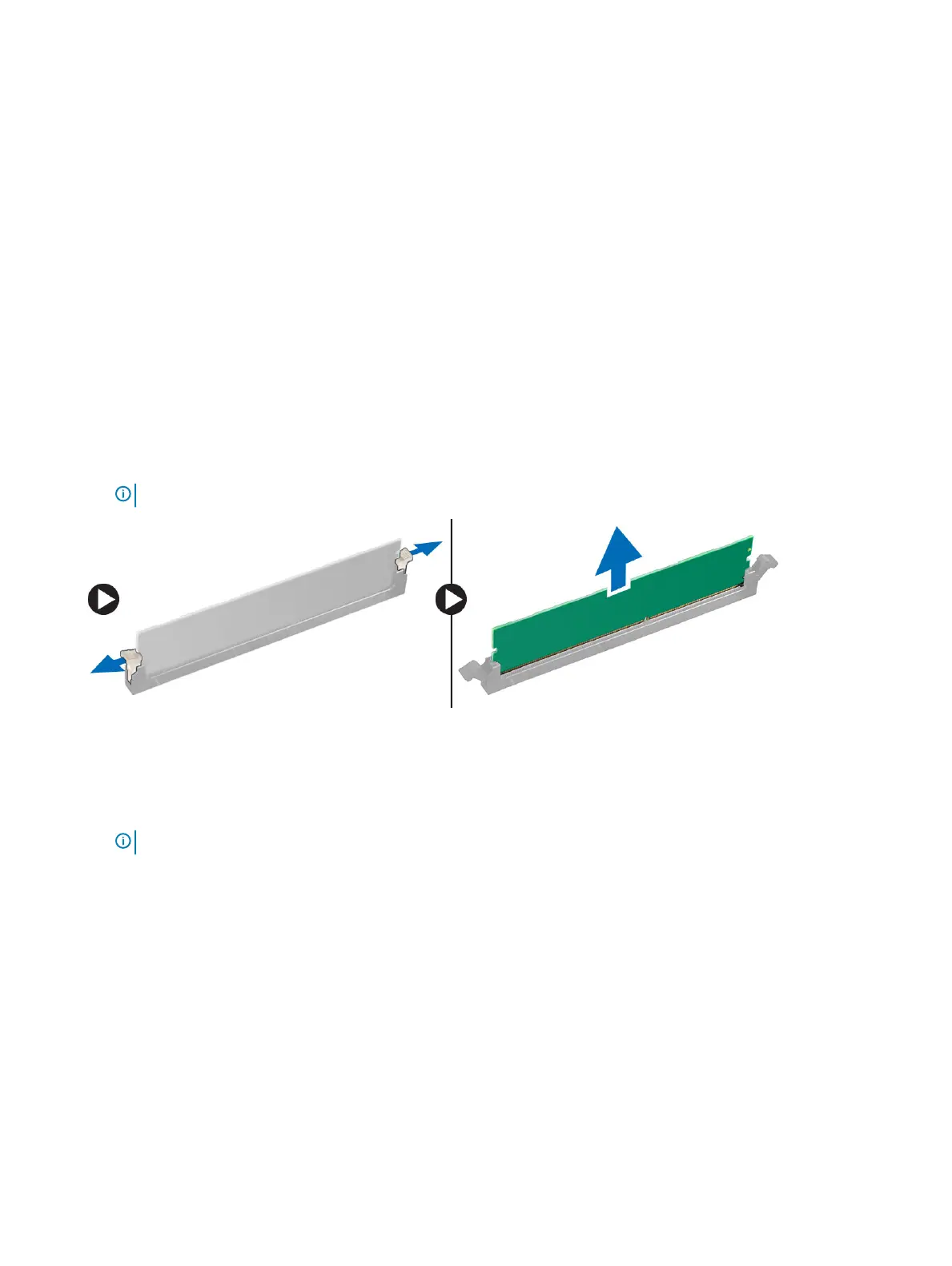

3 Press down on the memory-securing clips on each side of the memory module, and lift the memory module upwards to remove it from
the computer.
NOTE: Tilting of DIMM during removal can cause damage to the DIMM.
Installing the Memory
1 Insert the memory module into the memory socket.
2 Press down on the memory module until the securing clips secure the memory in place.
NOTE
: Tilting of DIMM during insertion can cause damage to the DIMM.
3 Install:
a memory shroud
b optical drive
c left cover
4 Follow the procedures in After Working Inside Your Computer.
Removing the Coin-Cell Battery
1 Follow the procedures in Before Working Inside Your Computer.
2 Remove:
a left cover
b PCIe card
3 Press the release latch away from the battery to allow the battery to pop-up from the socket. Lift the coin-cell battery out of the
computer.
Removing and installing components
21
