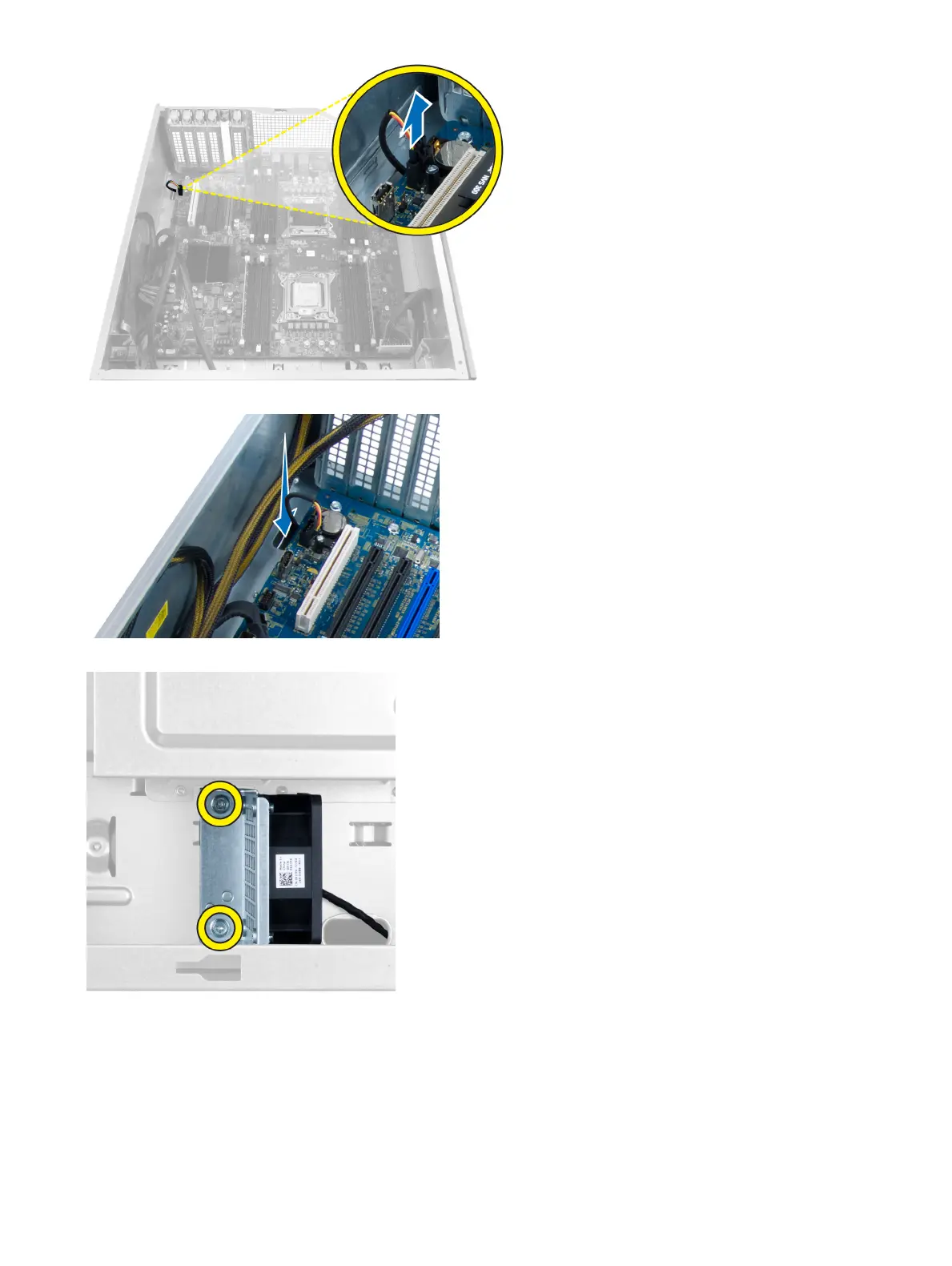

4 Route the cable from below the computer chassis as indicated.
5 Remove the screws that secure the hard-drive fan to the computer chassis and remove the fan from the computer.
Installing the Hard-Drive Fan
1 Install the screws that secure the hard-drive fan to the system chassis.
2 Route the hard-drive fan cable through the chassis and connect it to its slot on the system board.
3 Install:
46
Removing and installing components
