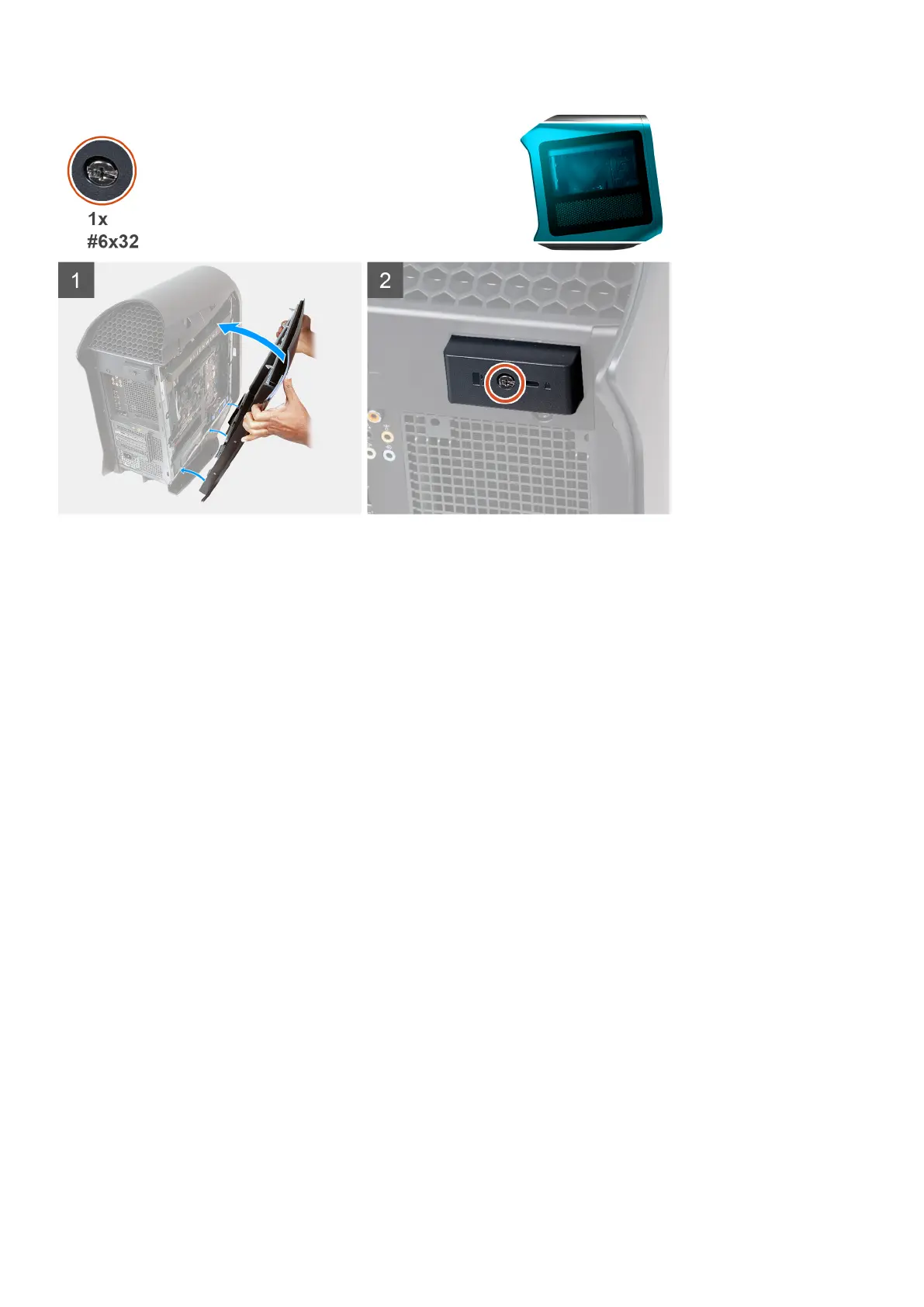

Steps
1. Locate the tabs on the left-side cover and slots on the chassis.
2. Rotate the left-side cover towards the chassis until it snaps into place.
3. Tighten the captive screw (#6-32) that secures the side-cover release latch to the chassis.
Next steps
1. Follow the procedure in After working inside your computer.
Top cover
Removing the top cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the top cover and provide a visual representation of the removal procedure.
Removing and installing components
19
