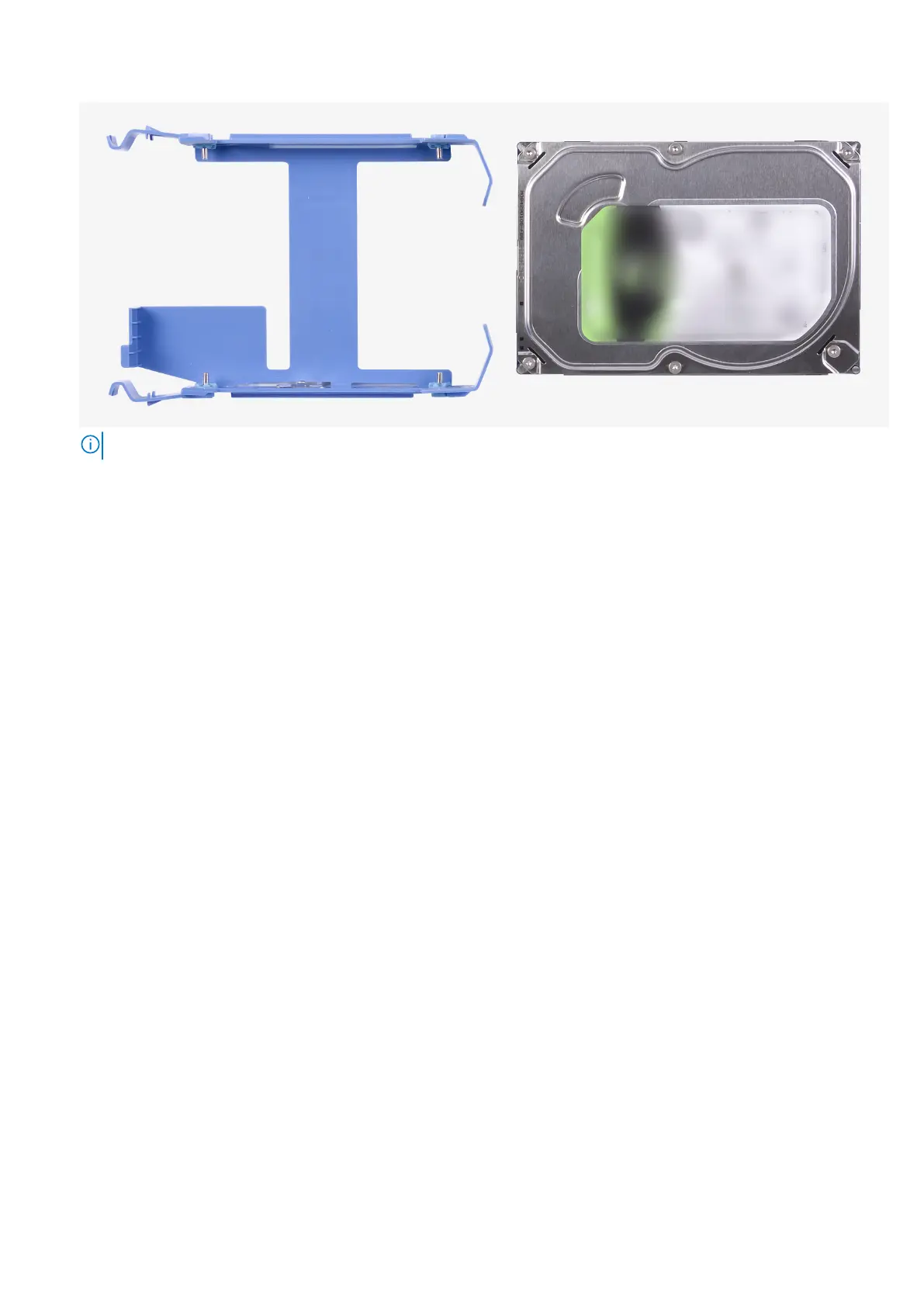

NOTE: Note the orientation of the hard drive so that you can replace it correctly.
Installing the 3.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard drive and provide a visual representation of the installation
procedure.
Removing and installing components
33
