Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task

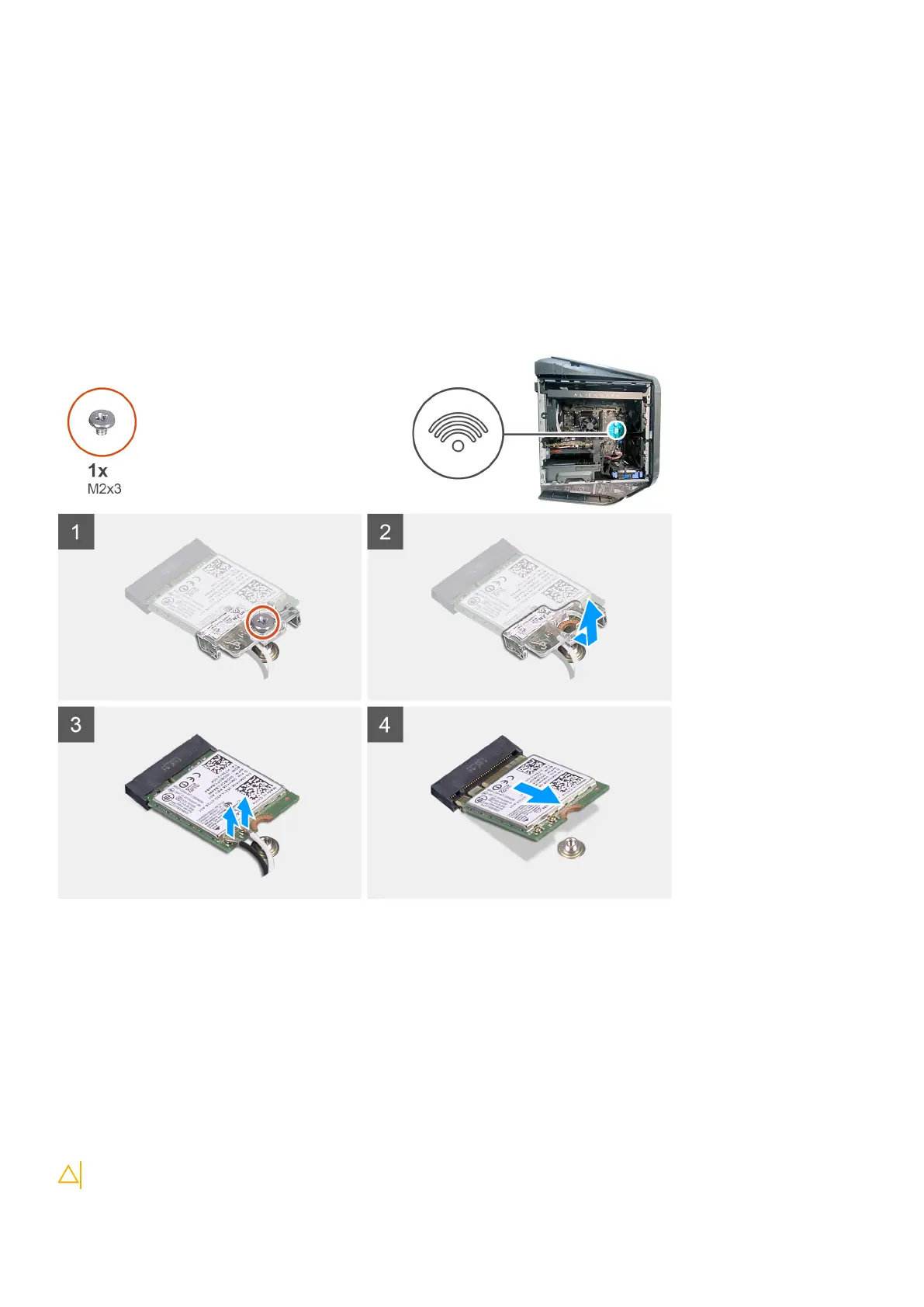

The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.
Steps
1. Remove the screw (M2x3) that secures the wireless card to the system board.
2. Lift the wireless-card bracket off the wireless card.
3. Disconnect the antenna cables from the wireless card.
4. Slide and remove the wireless card from the wireless-card slot.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: To avoid damage to the wireless mini-card, do not place any cables under it.
Removing and installing components 71
