About this task
Steps
1. Align the tabs on the right-side cover with the slots on the chassis.
2. Push the right-side cover towards the chassis until it snaps into place.
Next steps
1. Install the top cover.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the top cover.
4. Remove the right-side cover.
About this task

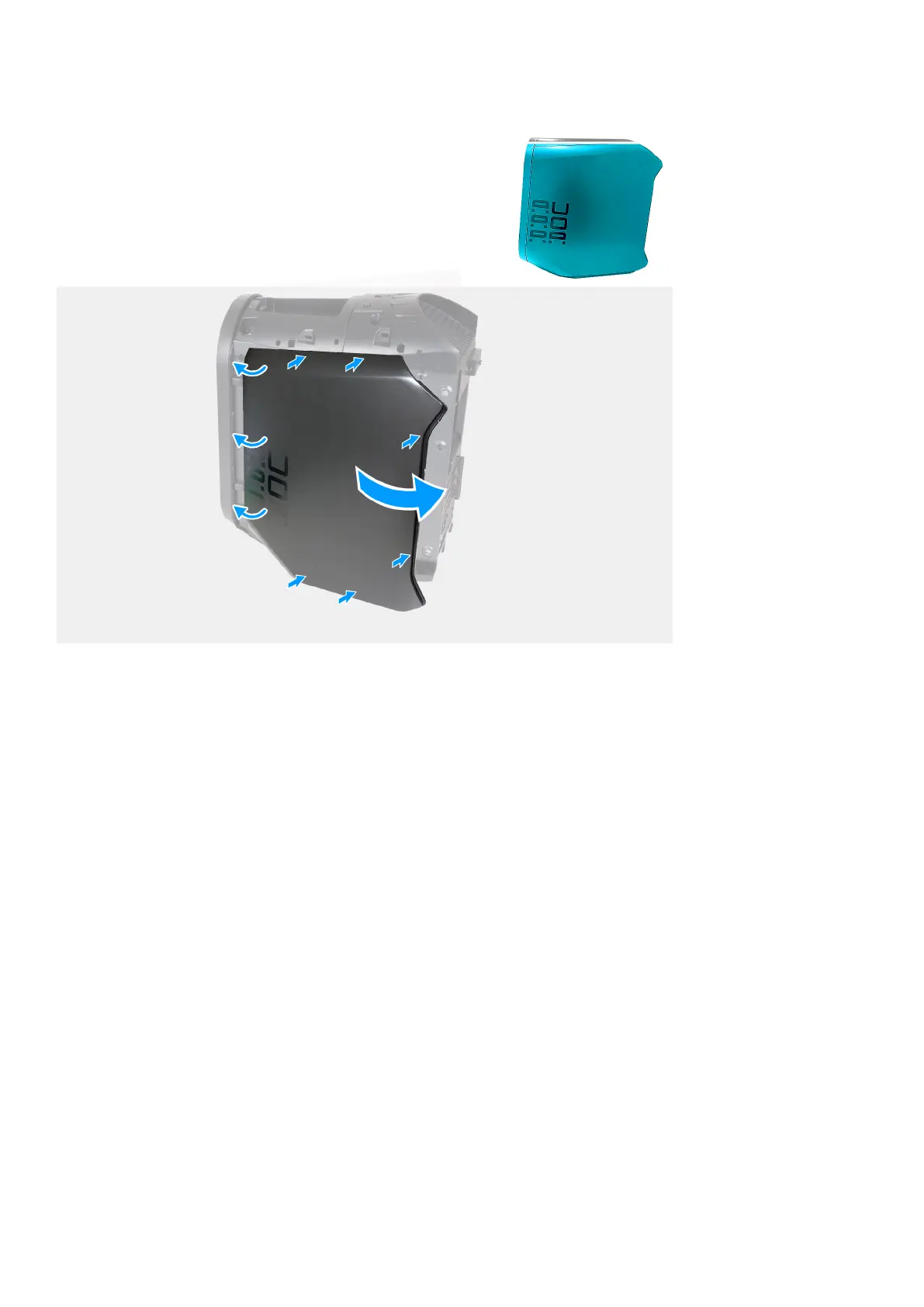

The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
Removing and installing components
23
