Steps

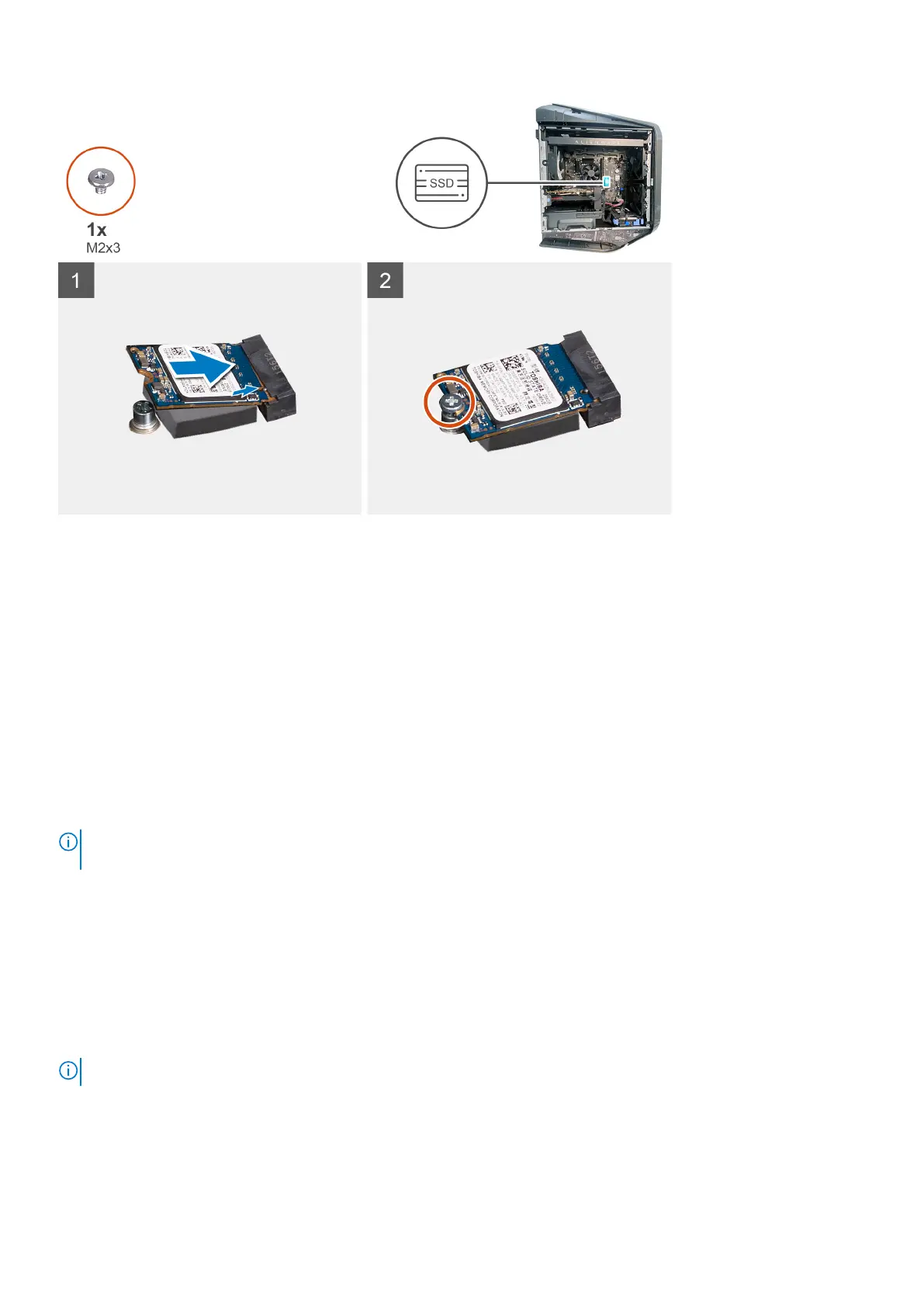

1. Align the notch on the 2230 solid-state drive with the tab on the SSD slot one on the system board.
2. Insert the 2230 solid-state drive at a 45-degree angle into the system board.
3. Press the other end of the 2230 solid-state drive down and replace the screw (M2x3) that secures the 2230 solid-state
drive to the system board.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
3. Verify if the storage device is installed correctly (optional):
a. If you are replacing a storage device which does not have the operating system installed, follow the steps in Identifying
storage device in device manager.
b. If you are replacing a storage device which does not have the operating system installed, follow the steps in Identifying
your storage device in system setup (BIOS).
NOTE:
To install the operating system on to your storage device, see Reinstall Windows to the Dell factory image
using recovery media in the Knowledge Base Resource at www.dell.com/support.
Removing the 2280 solid-state drive in SSD slot one
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
NOTE: This procedure applies only to computers shipped with a 2280 solid-state drive installed in SSD slot one.
The following images indicate the location of the 2280 solid-state drive that is installed in SSD slot one and provide a visual
representation of the removal procedure.
54
Removing and installing components
