Dell D30M Service Manual

2. Remove the left-side cover.
About this task

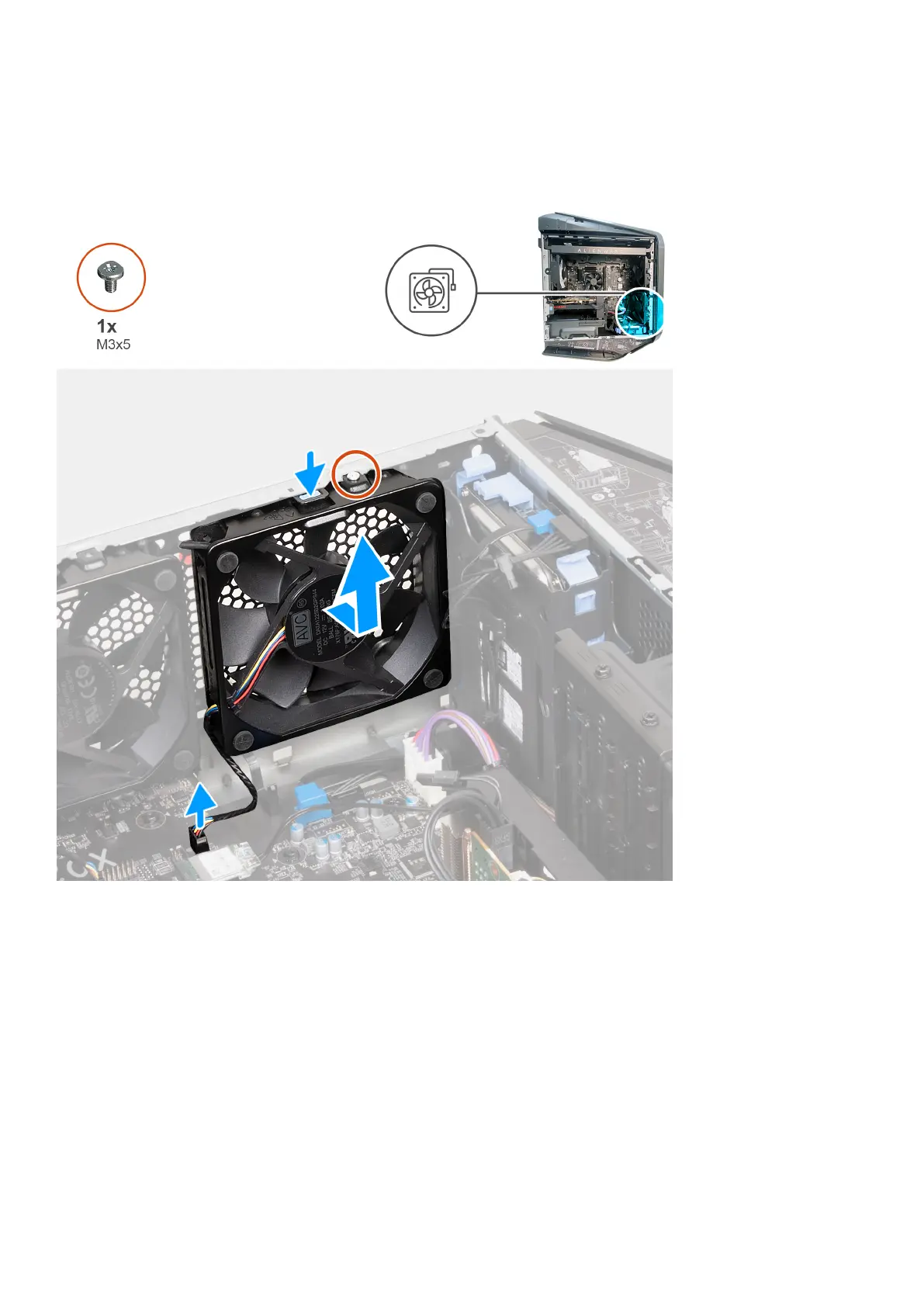

The following images indicate the location of the lower front-chassis fan and provide a visual representation of the removal
procedure.
Steps
1. Lay the computer on its right side.
2. Disconnect the lower front-chassis fan cable from the system board.
3. Remove the screw (M3x5) that secures the lower front-chassis fan to the chassis.
4. Push the tab to release the lower front-chassis fan from the chassis.
5. Slide and lift the lower front-chassis fan off the chassis.
Installing the lower front-chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
79
