Steps
1. Lay the computer on its right side.
2. Disconnect the rear-chassis fan cable from the system board.
3. Remove the screw (M3x5) that secures the rear-chassis fan to the chassis.
4. Slide and lift the rear-chassis off the chassis.
Installing the rear-chassis fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

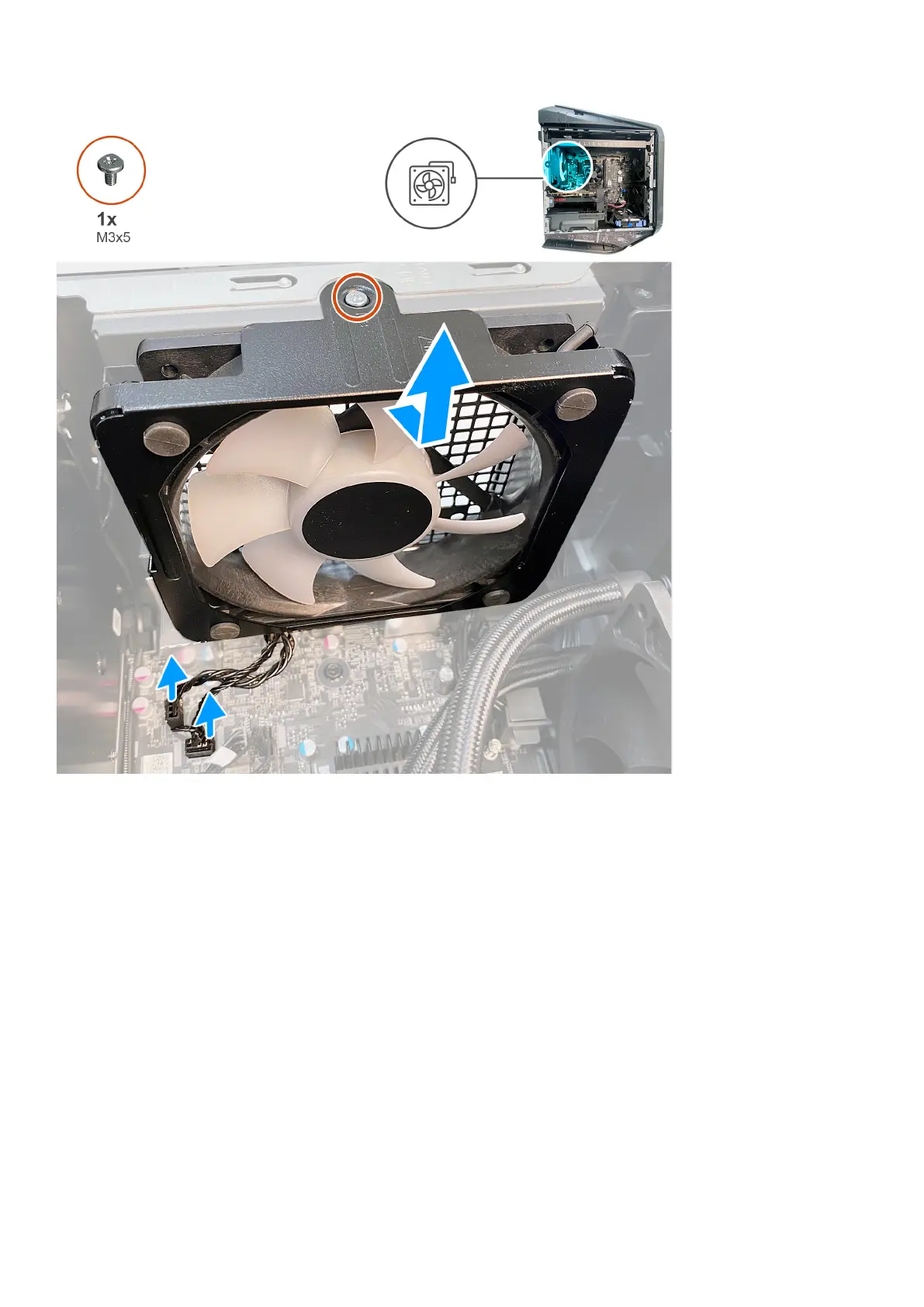

The following images indicate the location of the rear-chassis fan and provide a visual representation of the installation
procedure.
