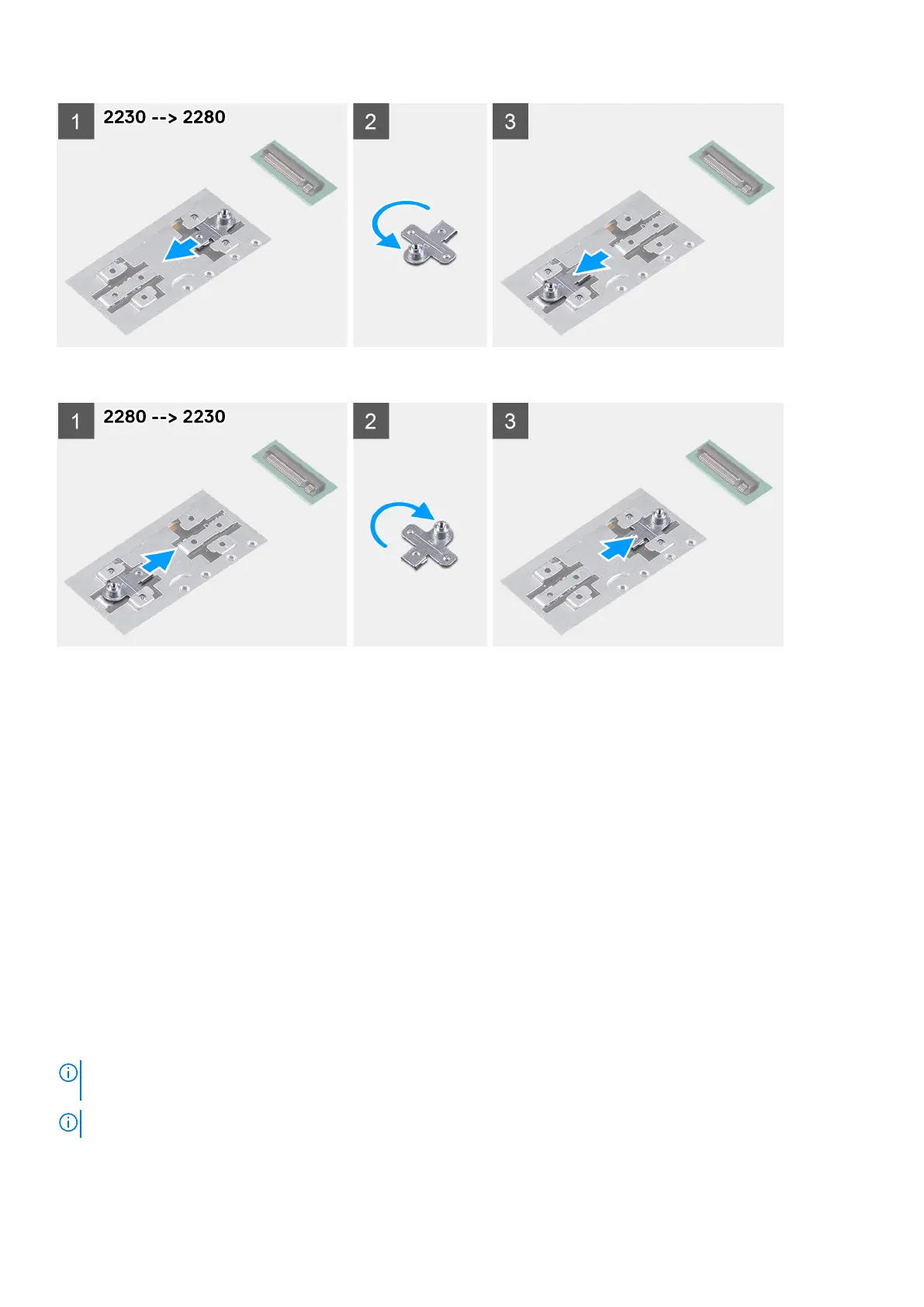

The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when replacing an
M.2 2280 solid-state drive with an M.2 2230 solid-state drive in SSD1 slot.
Steps
1. Slide and remove the solid-state drive mounting bracket from the mounting bracket slot on the palm-rest and keyboard assembly.
2. Rotate the solid-state drive mounting bracket.
3. Slide the solid-state mounting bracket into the mounting slot on the palm-rest and keyboard assembly.
4. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever applicable.
Solid-state drive in SSD2 slot
Removing the M.2 2230 solid-state drive from the SSD2
slot
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2
2280 solid-state drive in the SSD2 slot.
NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive installed in the SSD2 slot.
The following image indicates the location of the M.2 2230 solid-state drive that is installed in the SSD2 slot and provides a visual
representation of the removal procedure.
