Steps

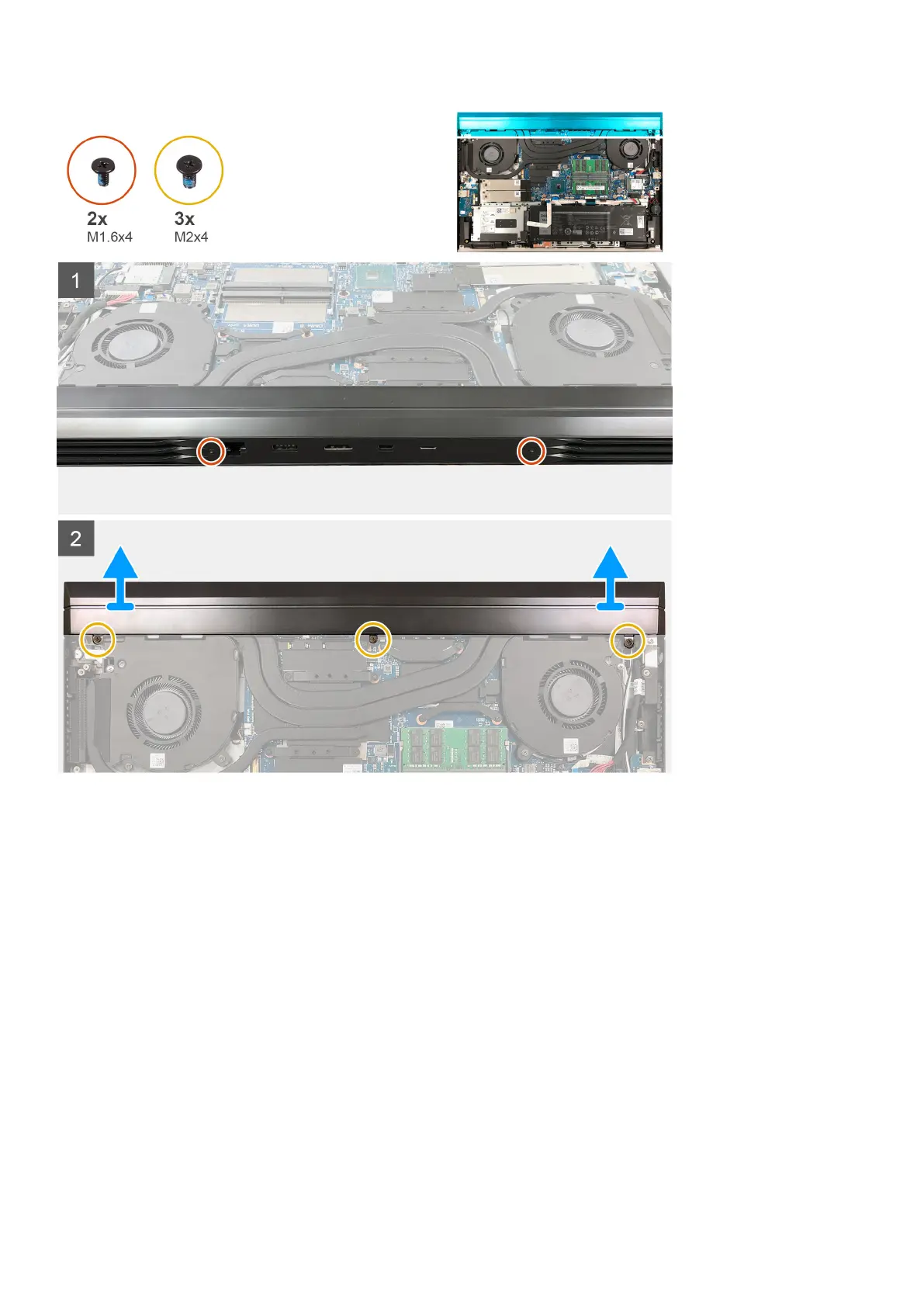

1. Remove the two screws (M1.6x4) that secure the rear cover to the palm-rest and keyboard assembly.
2. Remove the three screws (M2x4) that secure the rear cover to the system board.
3. Push the rear cover away from the system board and lift it off the palm-rest and keyboard assembly.
Installing the rear cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the rear cover and provides a visual representation of the installation procedure.
40
Removing and installing components
