Steps

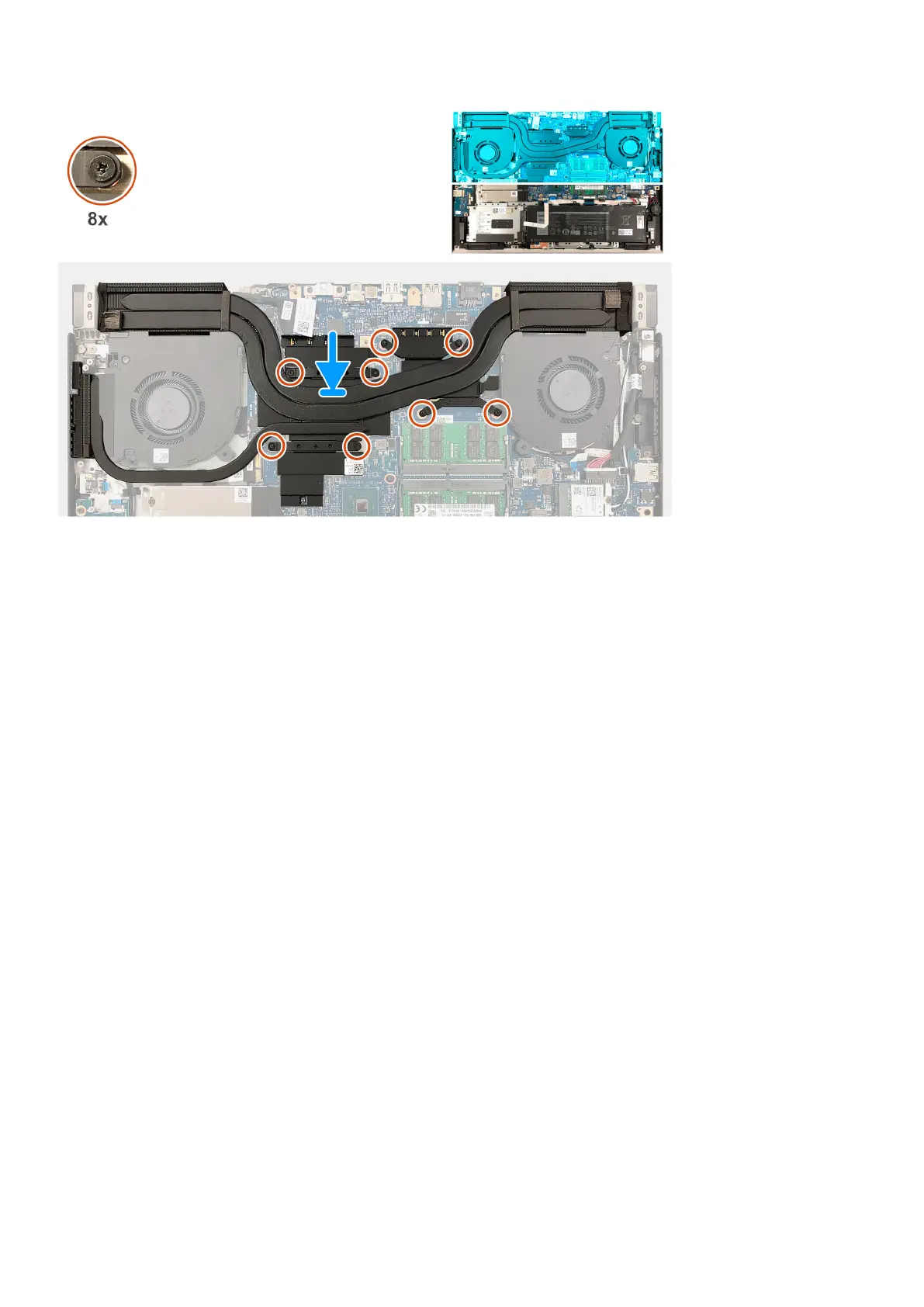

1. Align the screw holes on the heat sink with the screw holes on the system board.
2. In sequential order (as indicated by the numbers on the heat sink), tighten the eight captive screws that secure the heat sink to the
system board.
Next steps
1. Install the rear-cover bracket.
2. Install the rear cover.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the hard drive.
About this task
The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
Removing and installing components
49
