Steps

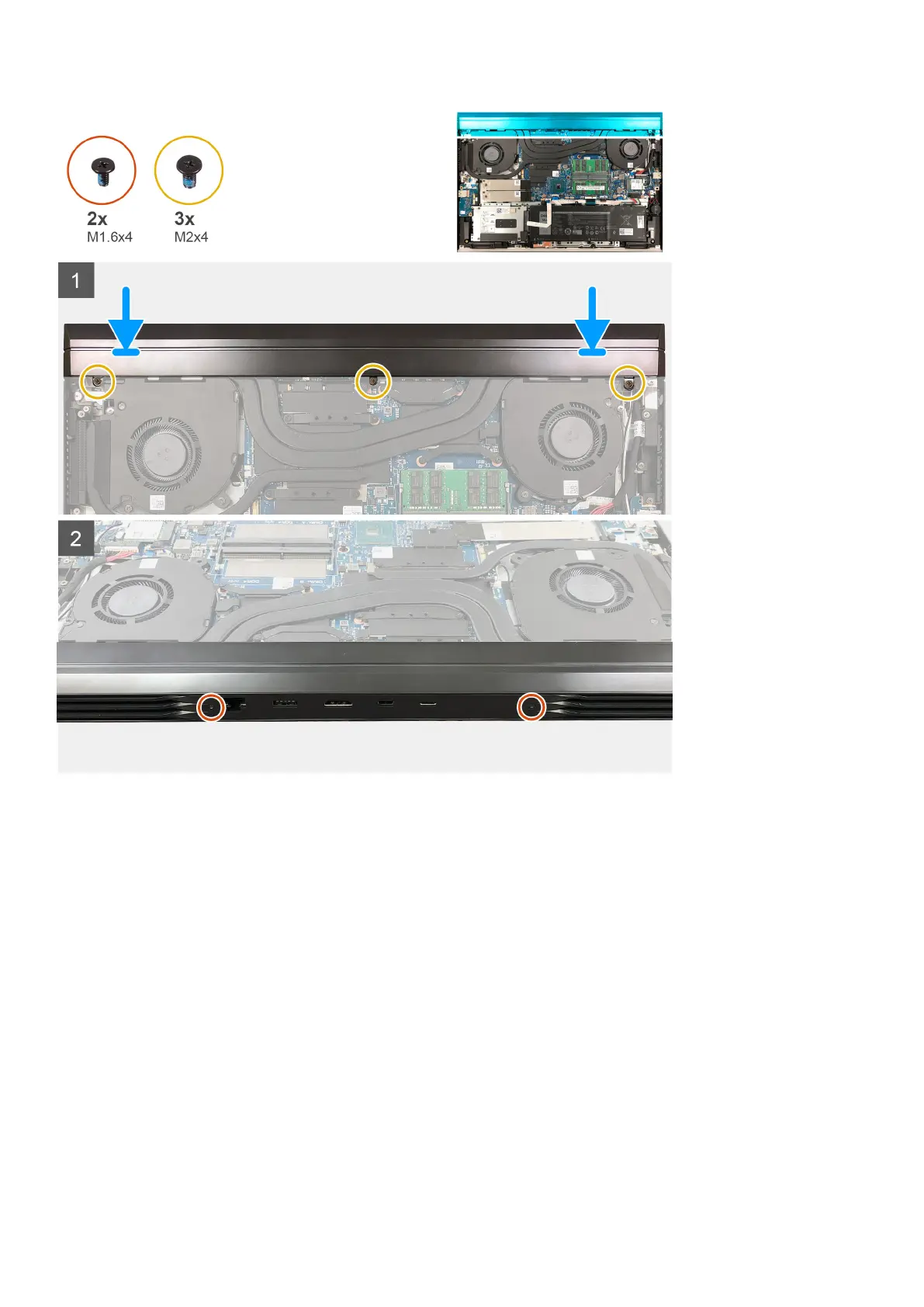

1. Slide the rear cover toward the system board.
2. Align the screw holes on the rear cover with the screw holes on the palm-rest and keyboard assembly.
3. Replace the two screws (M1.6x4) that secure the rear cover to the palm-rest and keyboard assembly.
4. Replace three screws (M2x4) that secure the rear cover to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Rear-cover bracket
Removing the rear-cover bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
Removing and installing components
41
