5. Remove the three screws (M2x4) that secure the light bar to the palm-rest and keyboard assembly.
6. Lift the light bar, along with its cable, off the palm-rest and keyboard assembly.
Installing the light bar
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

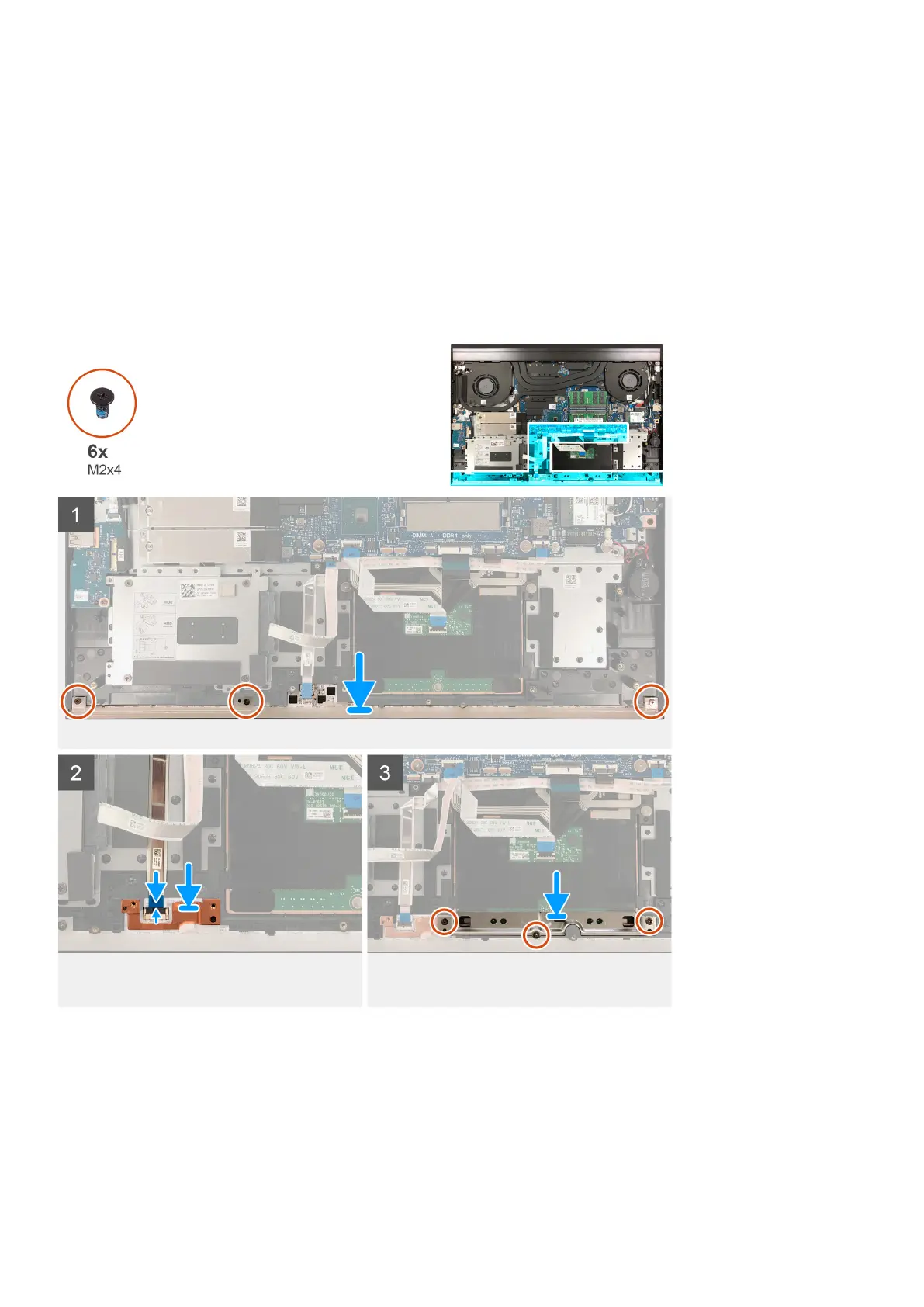

The following image indicates the location of the light bar and provides a visual representation of the installation procedure.
Steps
1. Align the light bar with the slots on the palm-rest and keyboard assembly.
2. Connect the light-bar cable to the system board and close the latch to secure the cable.
3. Using the alignment posts, install the light-bar cable-bracket to the system board.
4. Align the screw holes on the light bar with the screw holes on the palm-rest and keyboard assembly.
5. Replace the three screws (M2x4) that secure the light bar to the palm-rest and keyboard assembly.
6. Align the screw holes on the touchpad bracket with the screw holes on the palm-rest and keyboard assembly.
7. Replace the three screws (M2x4) that secure the touchpad bracket to the palm-rest and keyboard assembly.
Removing and installing components
63
