Steps

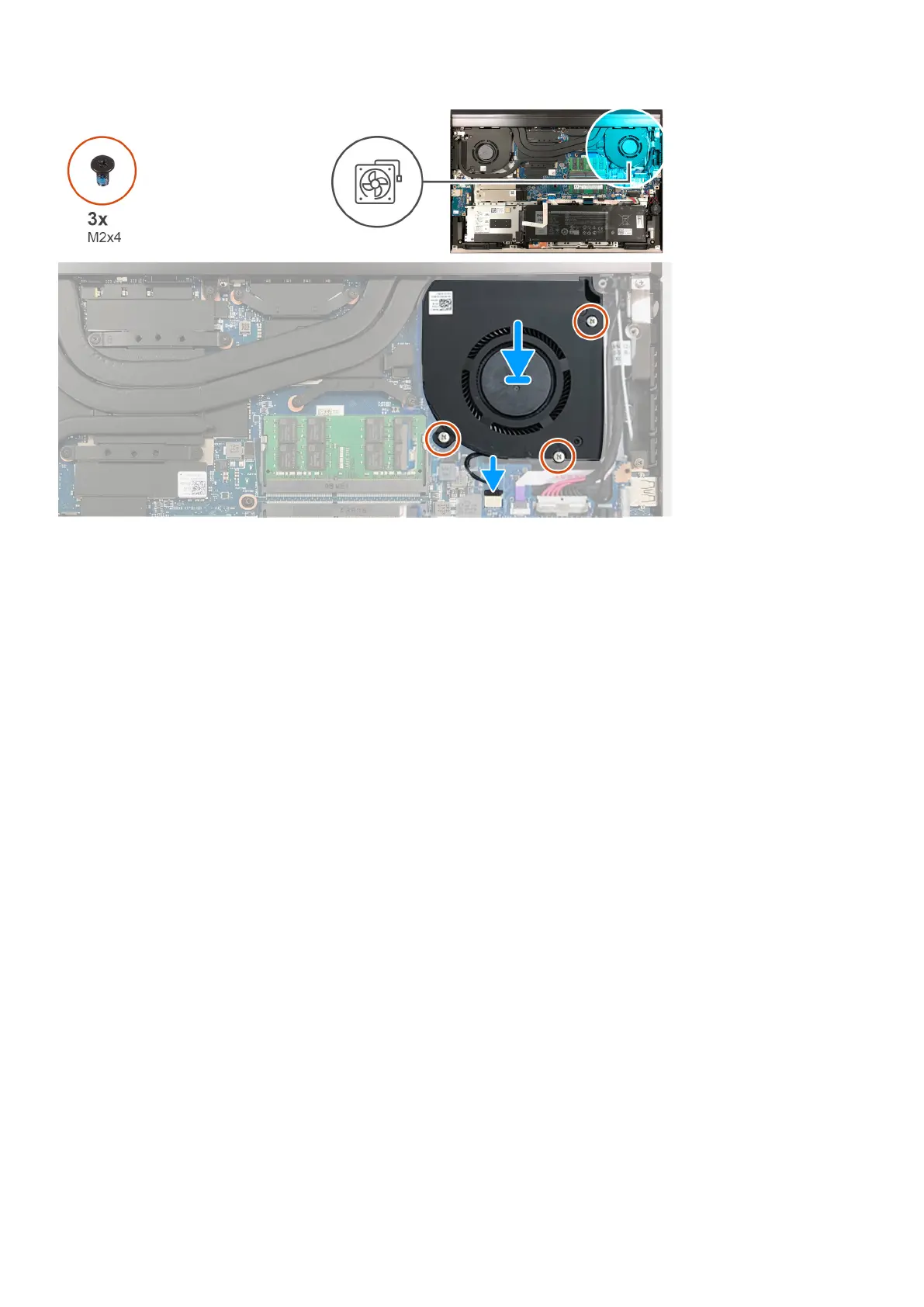

1. Align the screw holes on the processor fan with the screw holes on the system board and the palm-rest and keyboard assembly.
2. Connect the processor-fan cable to the system board.
3. Replace the three screws (M2x4) that secure the processor fan to the system board and the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Graphics-card fan
Removing the graphics-card fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the graphics-card fan and provides a visual representation of the removal procedure.
Removing and installing components
45
