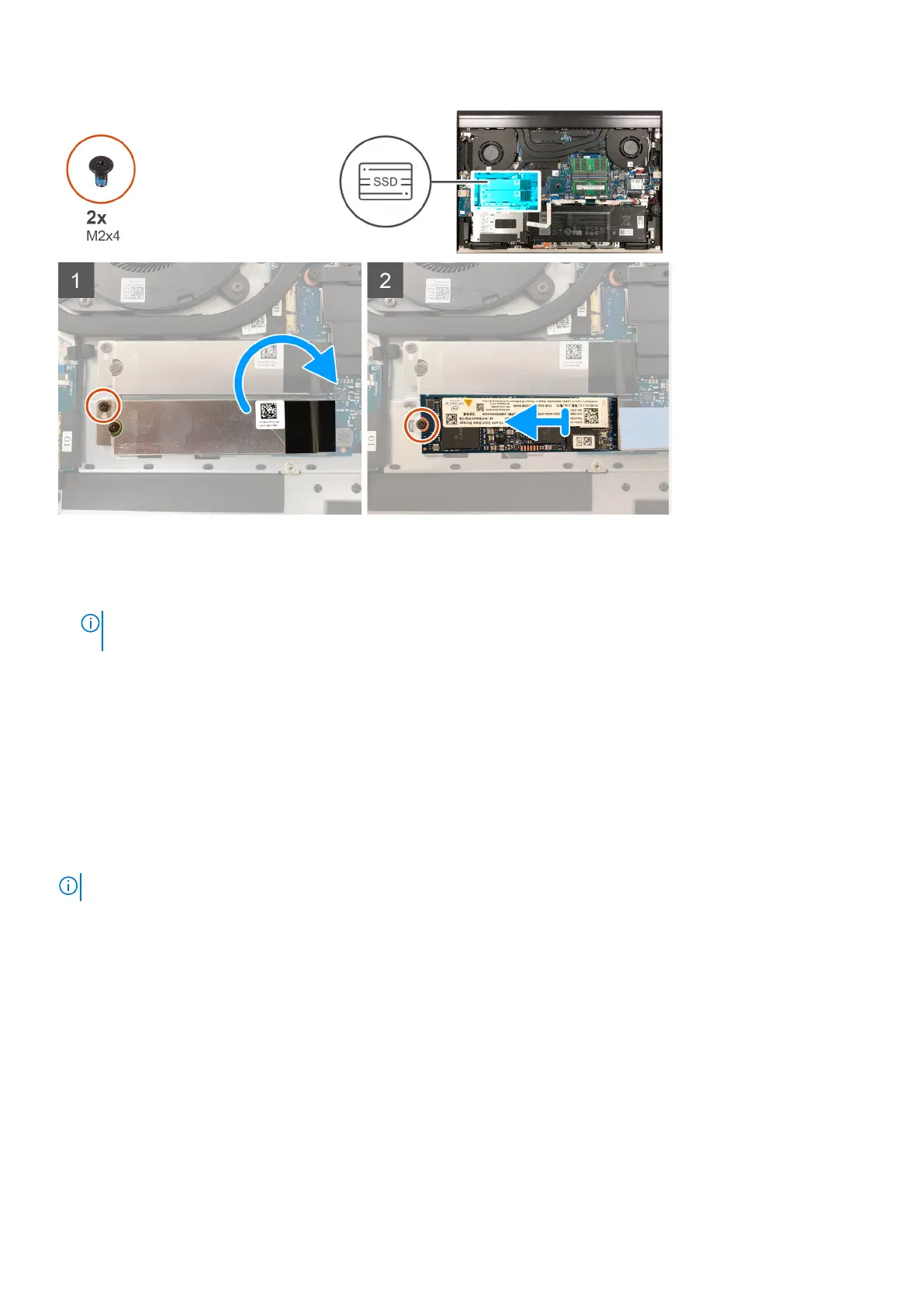

Steps
1. Remove the screw (M2x4) that secures the solid-state drive thermal bracket to the system board.
2. Lift the solid-state drive thermal bracket off the system board.
NOTE:
If you are replacing the system board, do not leave the solid-state drive thermal bracket on the system board.
Peel the tape off the system board and lift the solid-state drive thermal bracket.
3. Remove the screw (M2x4) that secures the solid-state drive to the system board.
4. Slide and lift the solid-state drive off the SSD2 slot.
Installing the M.2 2280 solid-state drive in the SSD2 slot
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: This procedure applies only to computers shipped with an M.2 2280 solid-state drive installed in the SSD2 slot.
The following image indicates the location of the M.2 2280 solid-state drive that is installed in the SSD2 slot and provides a visual
representation of the installation procedure.
Removing and installing components
33
