Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

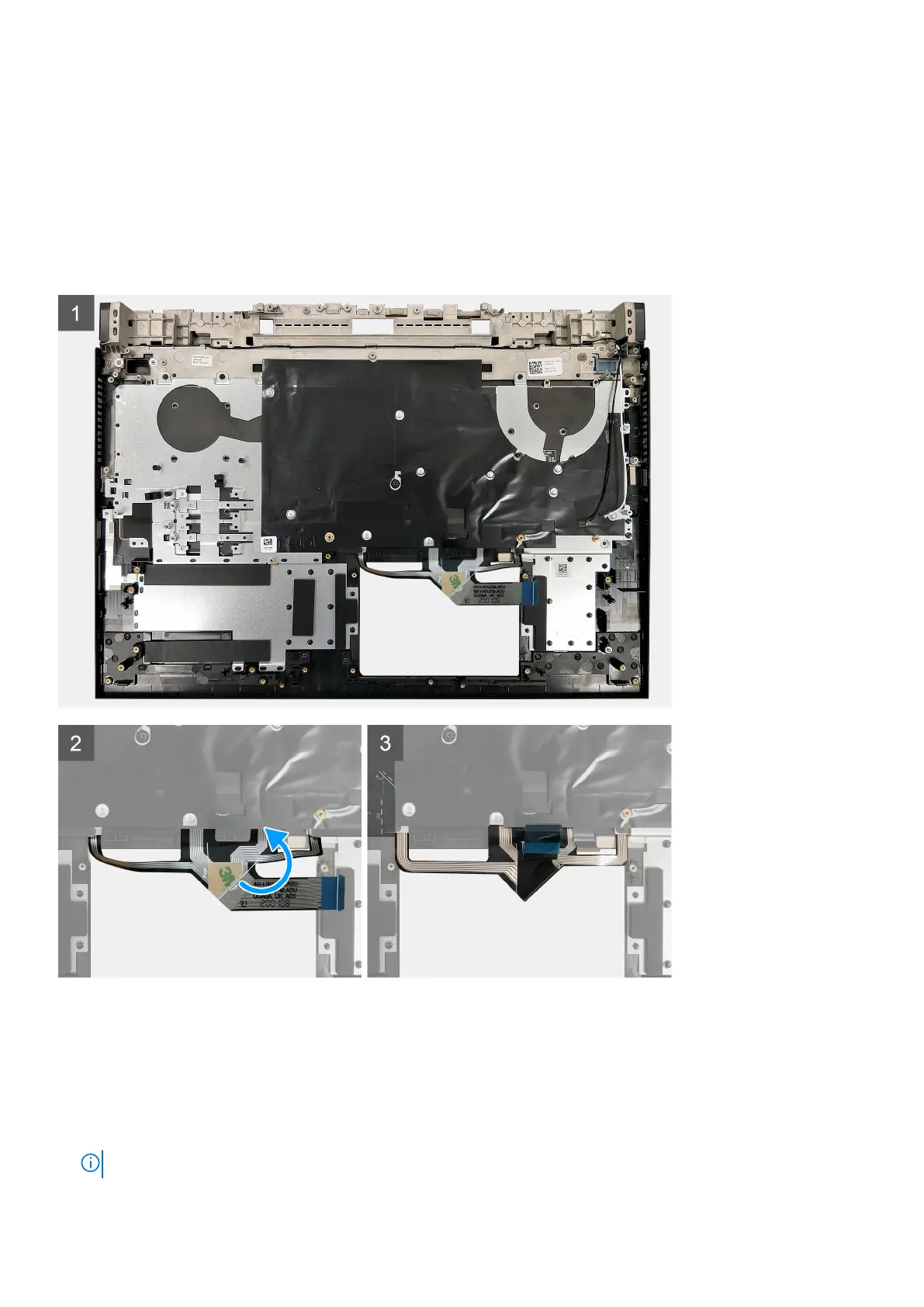

The following images indicate the palm-rest and keyboard assembly and provides a visual representation of the installation of the keyboard
cable.
Steps
1. Place the palm-rest and keyboard assembly on a clean and flat surface.
2. Fold the keyboard-back light cable along the fold line.
3. Install the touchpad.
4. Install the G key.
5. Install the speakers.
6. Install the system board.
NOTE: The system board can be removed or installed together with the heat sink attached.
74 Removing and installing components
