Steps

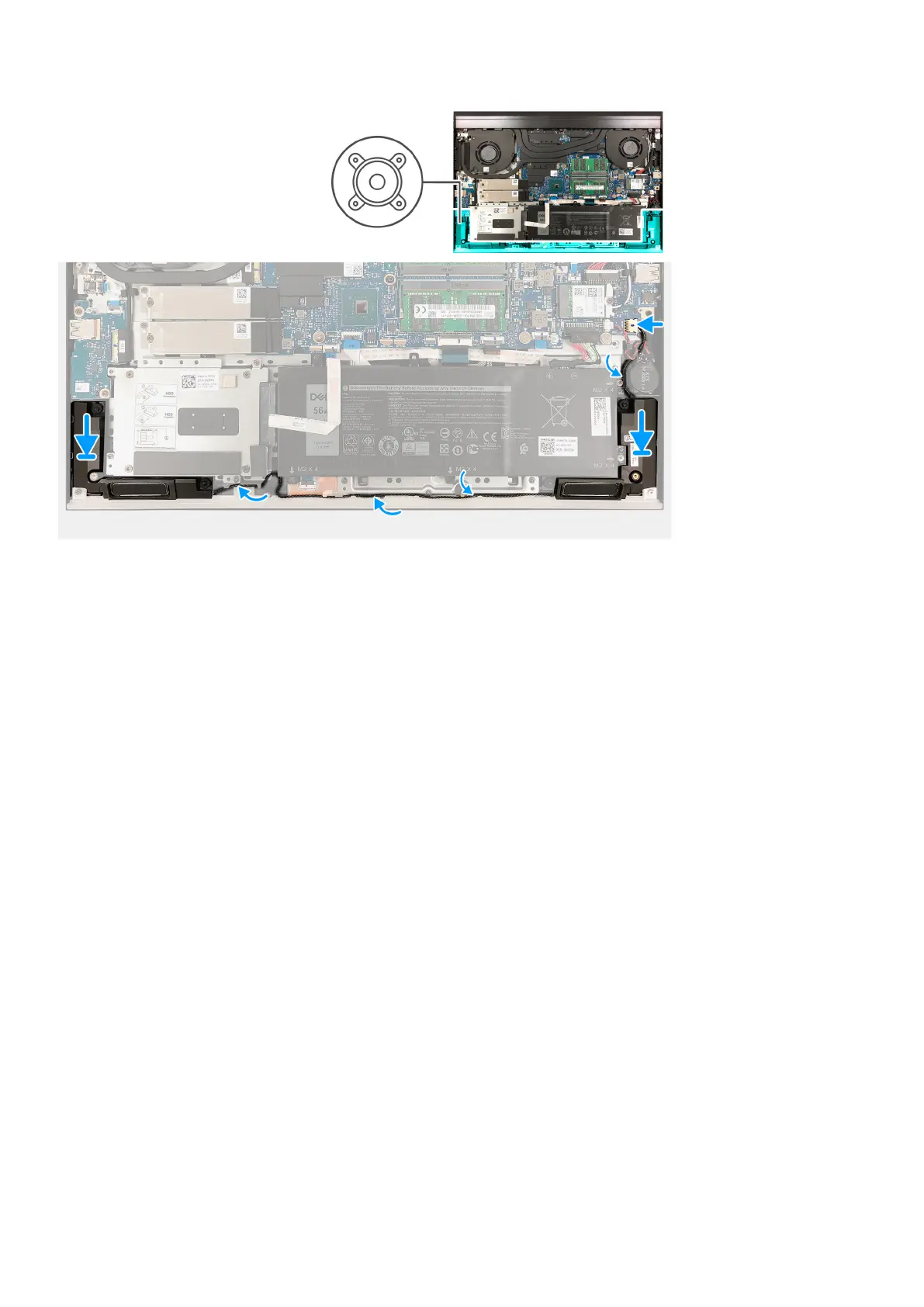

1. Using the alignment posts and rubber grommets, place the speakers on the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Rear cover
Removing the rear cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the rear cover and provides a visual representation of the removal procedure.
Removing and installing components
39
