Dell G7 7700 - Installing the G Key

Steps

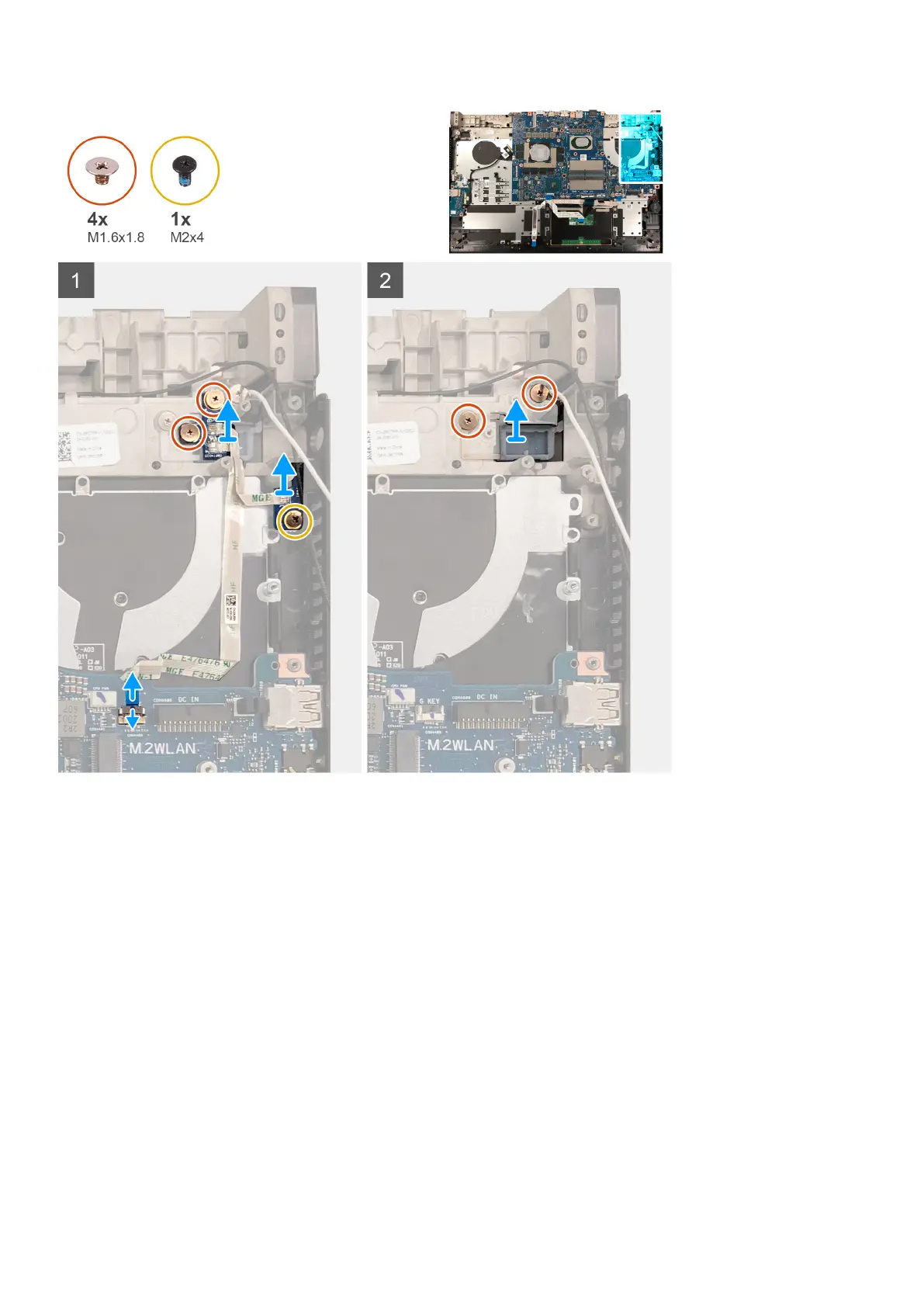

1. Remove the two screws (M1.6x1.8) that secure the G-key board to the palm-rest and keyboard assembly.
2. Remove the screw (M2x4) that secures the G-key board to the palm-rest and keyboard assembly.
3. Open the latch and disconnect the G-key cable from the system board.
4. Lift the G-key board off the palm-rest and keyboard assembly.
5. Remove the two screws (M1.6x1.8) that secures the G key to the palm-rest and keyboard assembly.
6. Lift the G key off the palm-rest and keyboard assembly.
Installing the G key
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the G key and provides a visual representation of the installation procedure.
