Steps
1. Remove the three screws (M2x4) that secure the graphics-card fan to the system board and the palm-rest and keyboard assembly.
2. Disconnect the graphics-card fan cable from the system board.
3. Lift the graphics-card fan off the palm-rest and keyboard assembly.
Installing the graphics-card fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

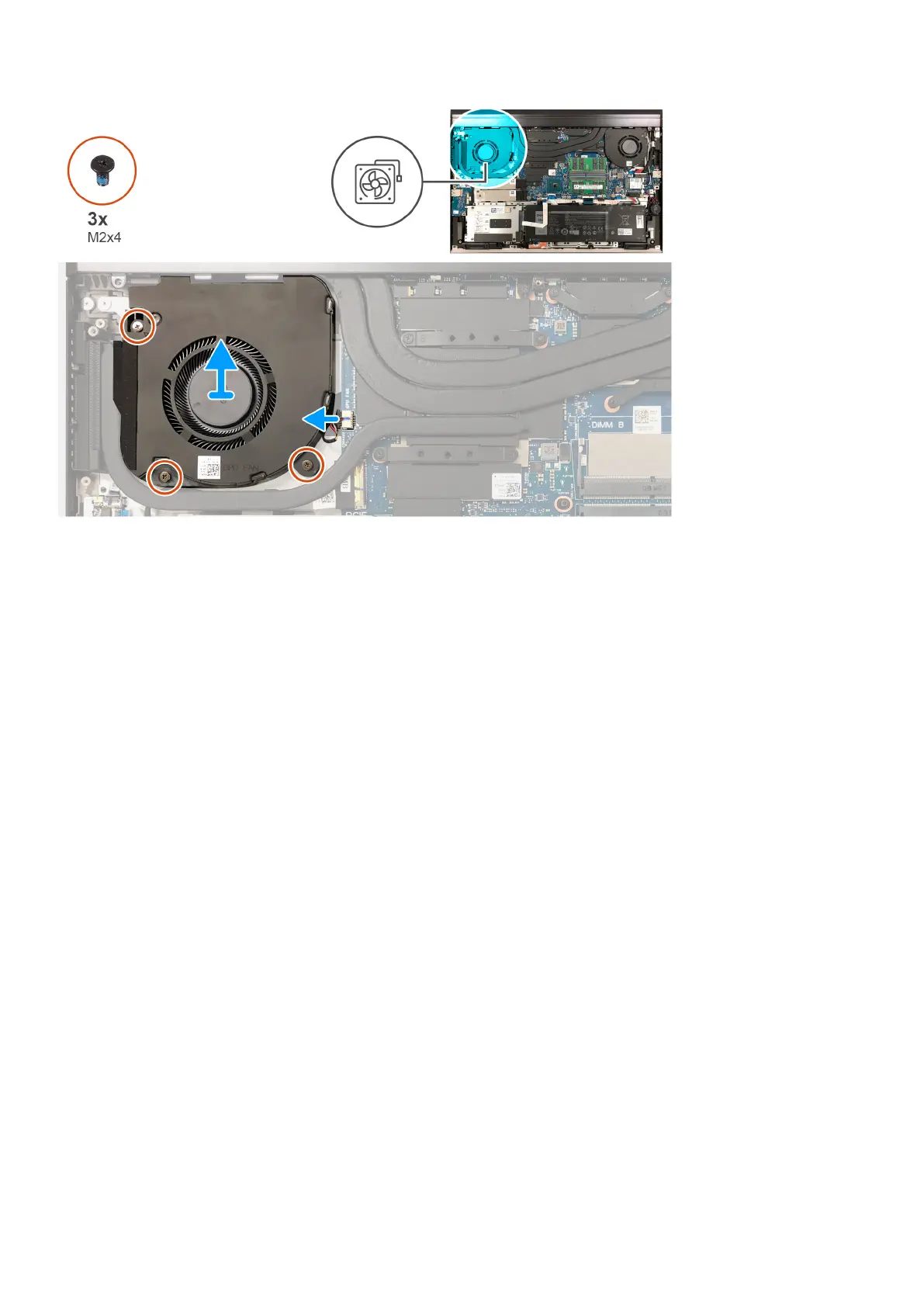

The following image indicates the location of the graphics-card fan and provides a visual representation of the installation procedure.
