Steps
1. Peel the adhesive off the display cable.
2. Remove the screw (M2x4) that secures the display cable to the system board.
3. Open the latch and disconnect the display cable from the system board.
4. Flip the computer over.

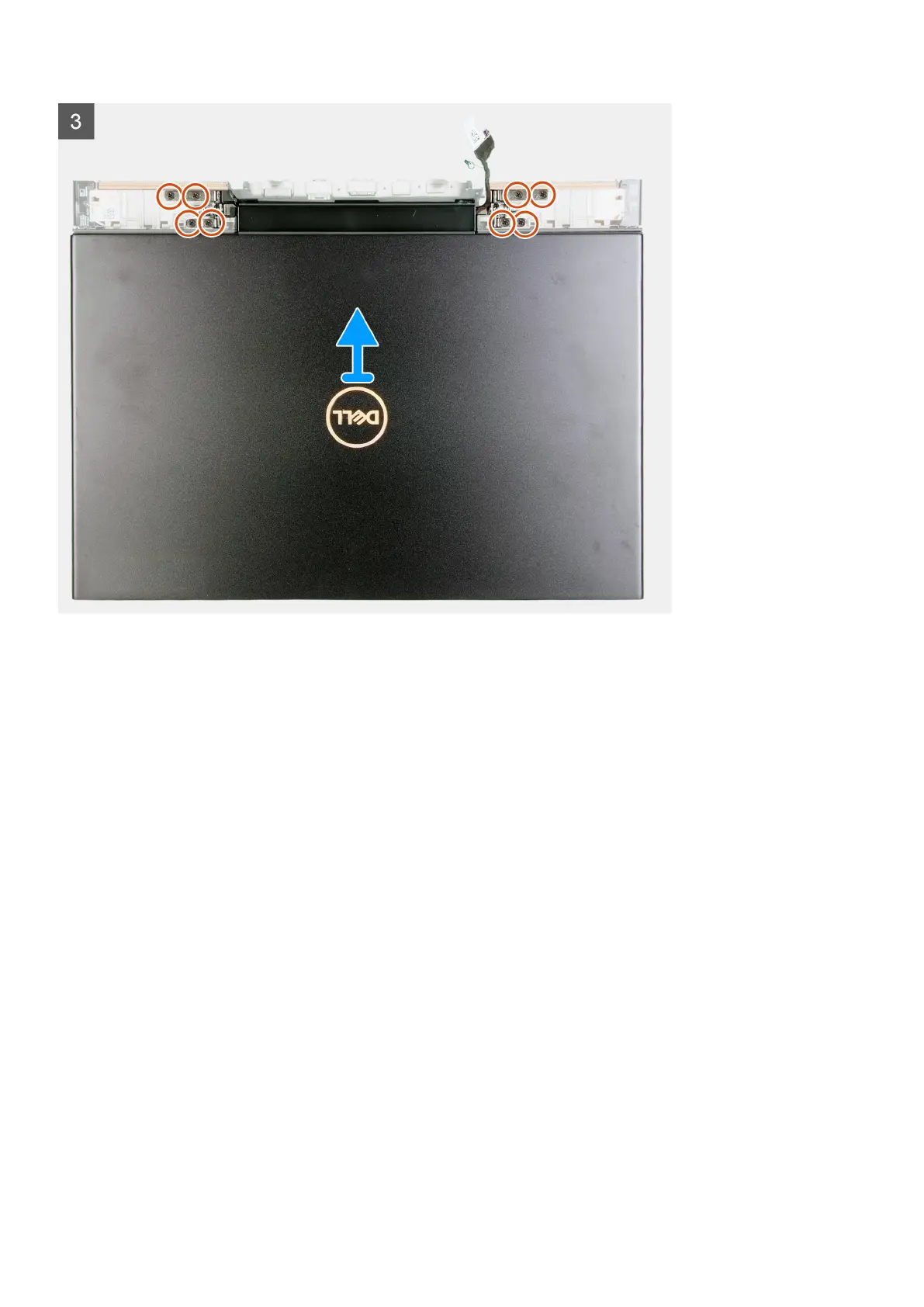

5. Remove the eight screws (M2.5x5) that secure the display-assembly hinges to the palm-rest and keyboard assembly.
6. Lift the display assembly from the palm-rest and keyboard assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the installation procedure.
Removing and installing components
55
