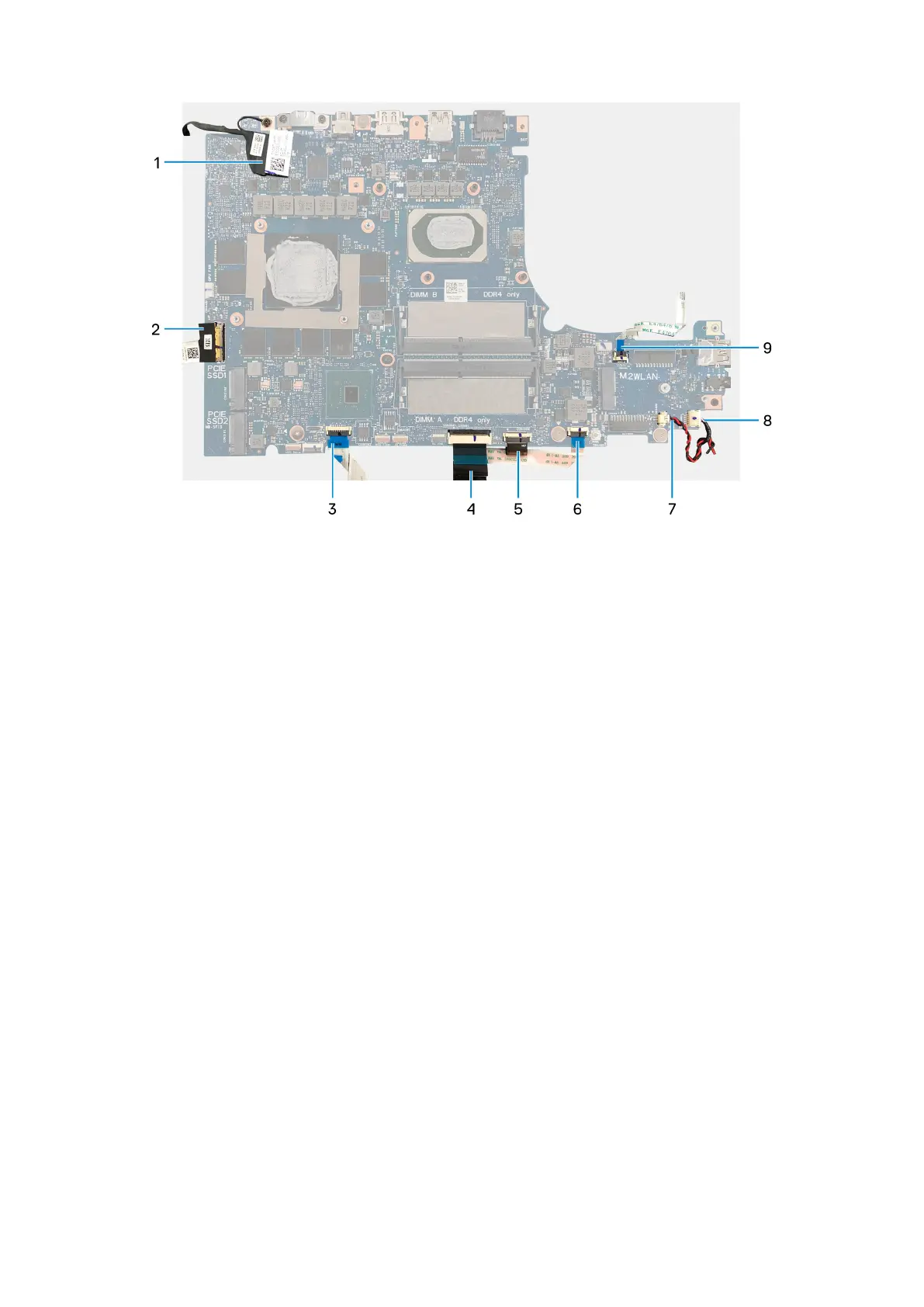

Figure 2. System-board cables
1.
Display cable 2. I/O-board cable
3. Touchpad cable 4. Keyboard cable
5. Keyboard-backlight cable 6. Light-bar cable
7. Speaker cable 8. Coin-cell battery cable
9. G-key cable
The following images indicate the location of the system board and provide a visual representation of the installation procedure.
68
Removing and installing components
