Solid-state drive
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

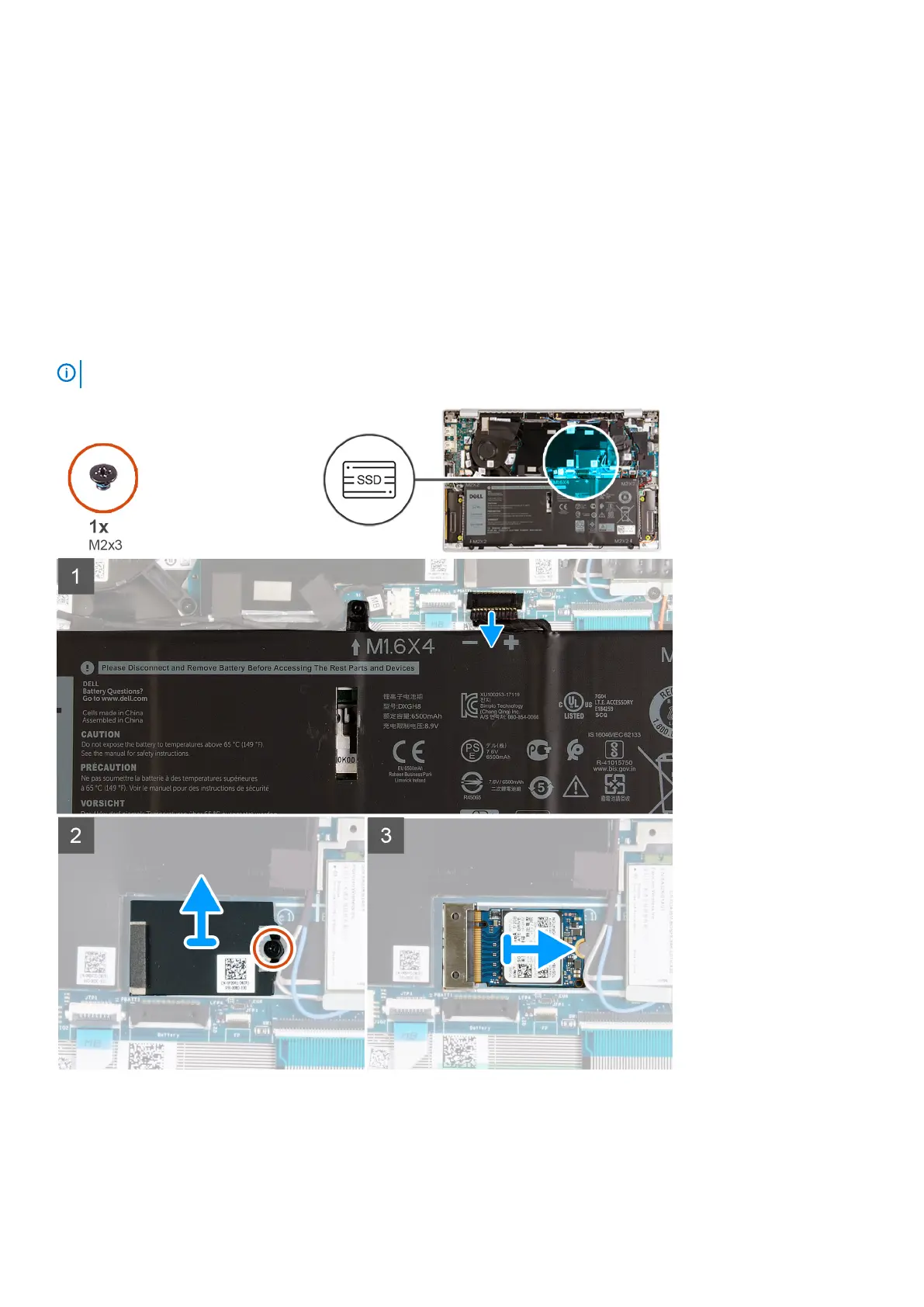

The following image indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal procedure.
NOTE:
Computers shipped with WWAN card supports only M.2 2230 solid-state drive.
Steps
1. Disconnect the battery cable from the system board.
2. Remove the screw (M2x3) that secures the solid-state drive bracket to the system board.
3. Slide and remove the solid-state drive bracket off the M.2 2230 solid-state drive on the system board.
