b display panel

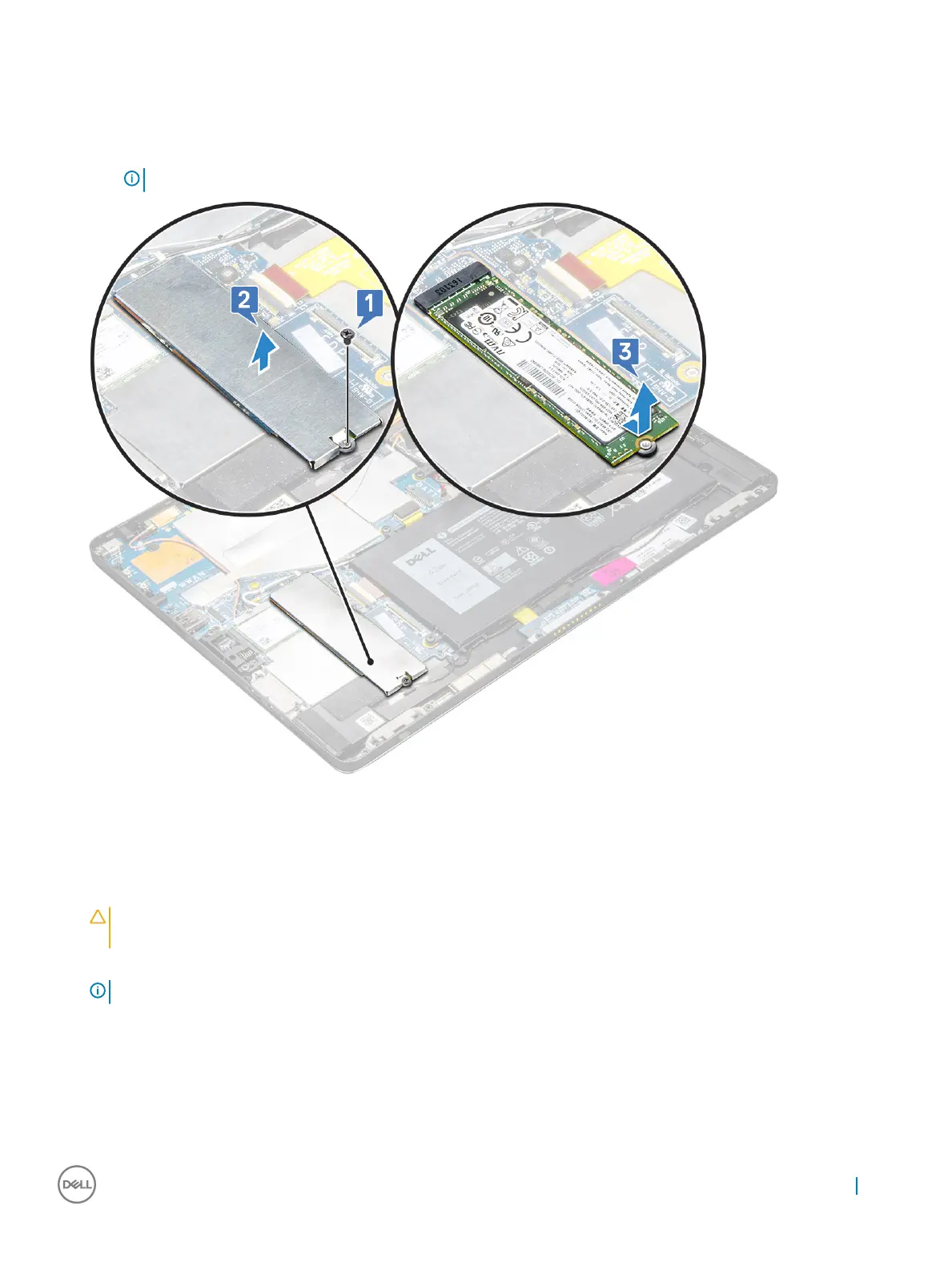

3 To remove the SSD module:
a Remove the M2.0 x 2.5 screw securing the SSD shield [1].
b Lift the SSD shield away from the tablet [2].
c Slide and lift the SSD module from the slot on the tablet [3].
NOTE: Ensure NOT to lift the SSD card by an angle more than 15°.
Installing SSD module
1 Insert the SSD module into the connector on the system board.
2 Install the SSD shield on the SSD module.
CAUTION
: Align the ve clips heads into the system board clips holes, to install the shield properly. Ensure to insert the clips
with caution, as the clips are small and delicate. Mishandling damages the clips head and needs replacing the shield.
3 Replace the M2.0 x 2.5 screw to secure SSD shield.
NOTE
: Align the shield carefully to avoid damage to the clips heads.
4 Install the:
a Display panel
b uSIM/microSD
Micro-SIM card is installed only on tablets shipped with WWAN module.
5 Follow the procedure in after working inside your tablet.
Removing and installing components
15
