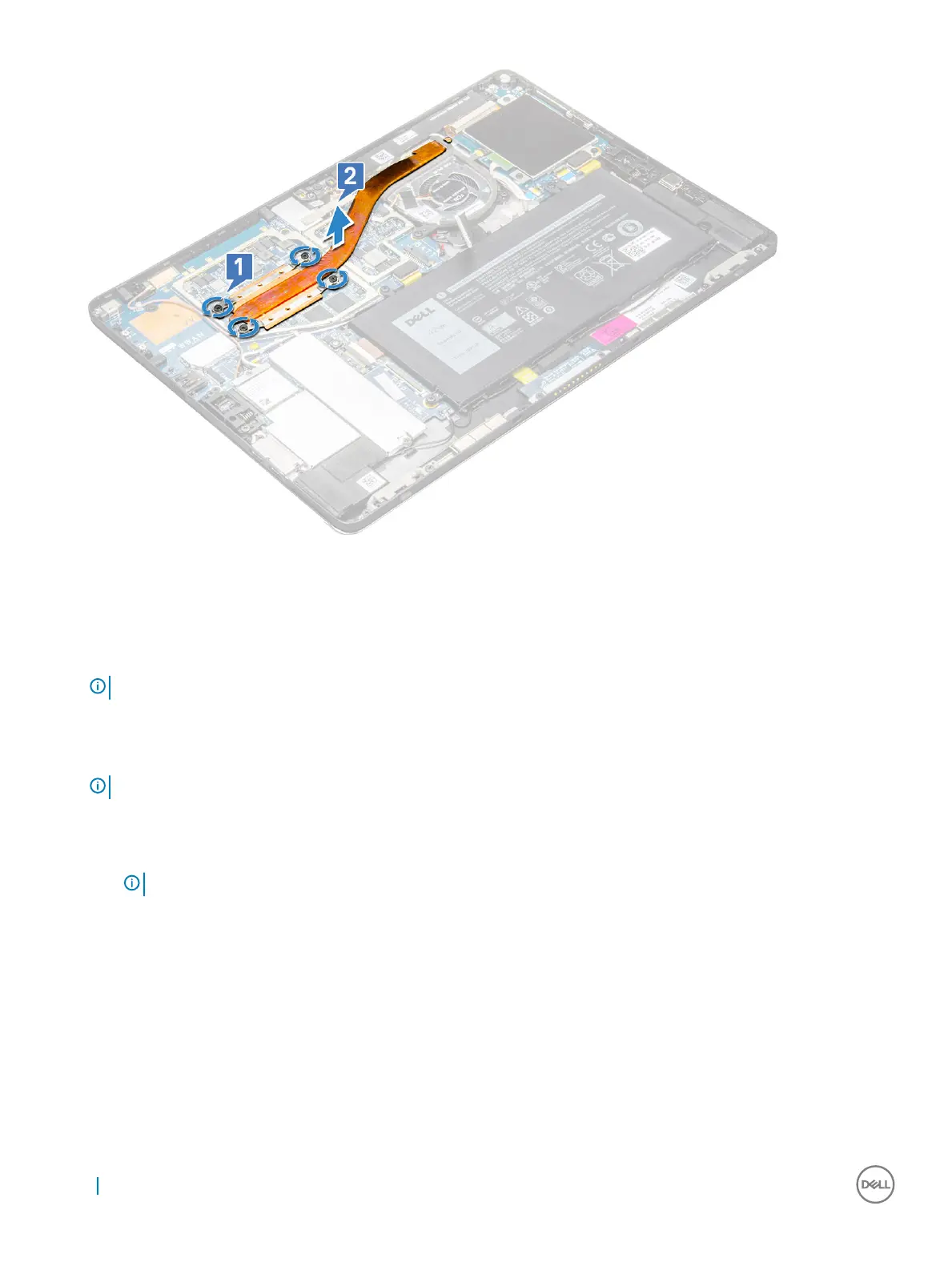

Installing heat sink assembly
1 Align the heat sink assembly with screw holders on the system board.
2 Replace the M2.0 x 2.5 screws to secure the heat sink to the system board.
NOTE
: Tighten the screws on the system board in the order of the callout numbers [1, 2, 3, 4] as indicated on the heat sink.
3 Install the shielding covers on the heat sink assembly.
4 Ax the conductive tapes to secure the shielding covers.
5 Replace the shielding covers to cover the heat sink assembly.
NOTE
: The shield covers can break if not handled carefully.
6 Install the:
a display panel
b uSIM/microSD card
NOTE
: uSIM card is installed only on tablets shipping with WWAN module.
7 Follow the procedure in After working inside your tablet
Front facing camera
Removing front camera
1 Follow the procedure in Before working inside your tablet.
2 Remove the:
a Micro-SIM and/or microSD card
22
Removing and installing components
