NOTE: Micro-SIM card slot is available only on tablets shipping with WWAN module.
b Display panel
3 To remove the heat sink assembly:
a Peel the conductive tapes that secure the shielding cover.
NOTE: Ensure to peel o the tape carefully, as any damage to the tape will need to raise a new order for conductive
tapes. The tape secures the IR camera cable from any damage. Ensure to x the tapes while installing or replacing the
component.
NOTE: Ensure to peel o the conductive tape, if the system heatsink is shipped with a
tape.

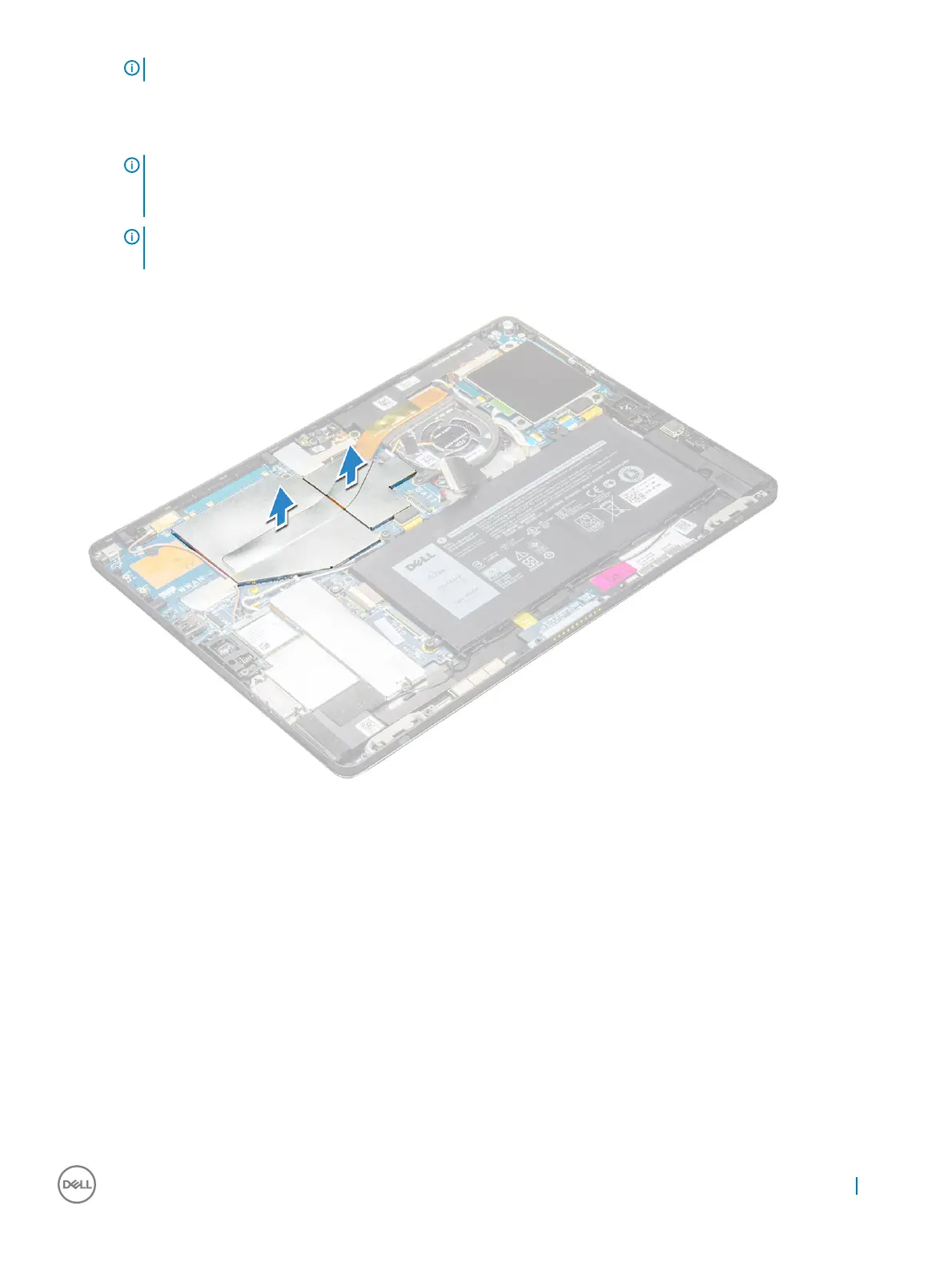

b Lift the shielding covers that secure the heat sink assembly .
4 To remove the heat sink assembly:
a Loosen the M2.0 x 2.5 captive screws (4) that secure the heat sink assembly to the tablet [1].
b Lift the heat sink assembly from the tablet [2].
Removing and installing components
21
