3 Insert the WLAN bracket to the WLAN card.
4 Replace the M2.0 x 3.5 screw to secure WLAN bracket.
5 Install the:
a display panel
b uSIM/microSD
NOTE: uSIM card is installed only on tablets shipping with WWAN module.
6
Follow the procedure in After working inside your tablet.
Speaker
Removing the speaker
1 Follow the procedure in Before working inside your tablet.
2 Remove the:
a Micro SIM/micro SD card
NOTE: Micro SIM card slot is available only on tablets shipping with WWAN module.
b display panel

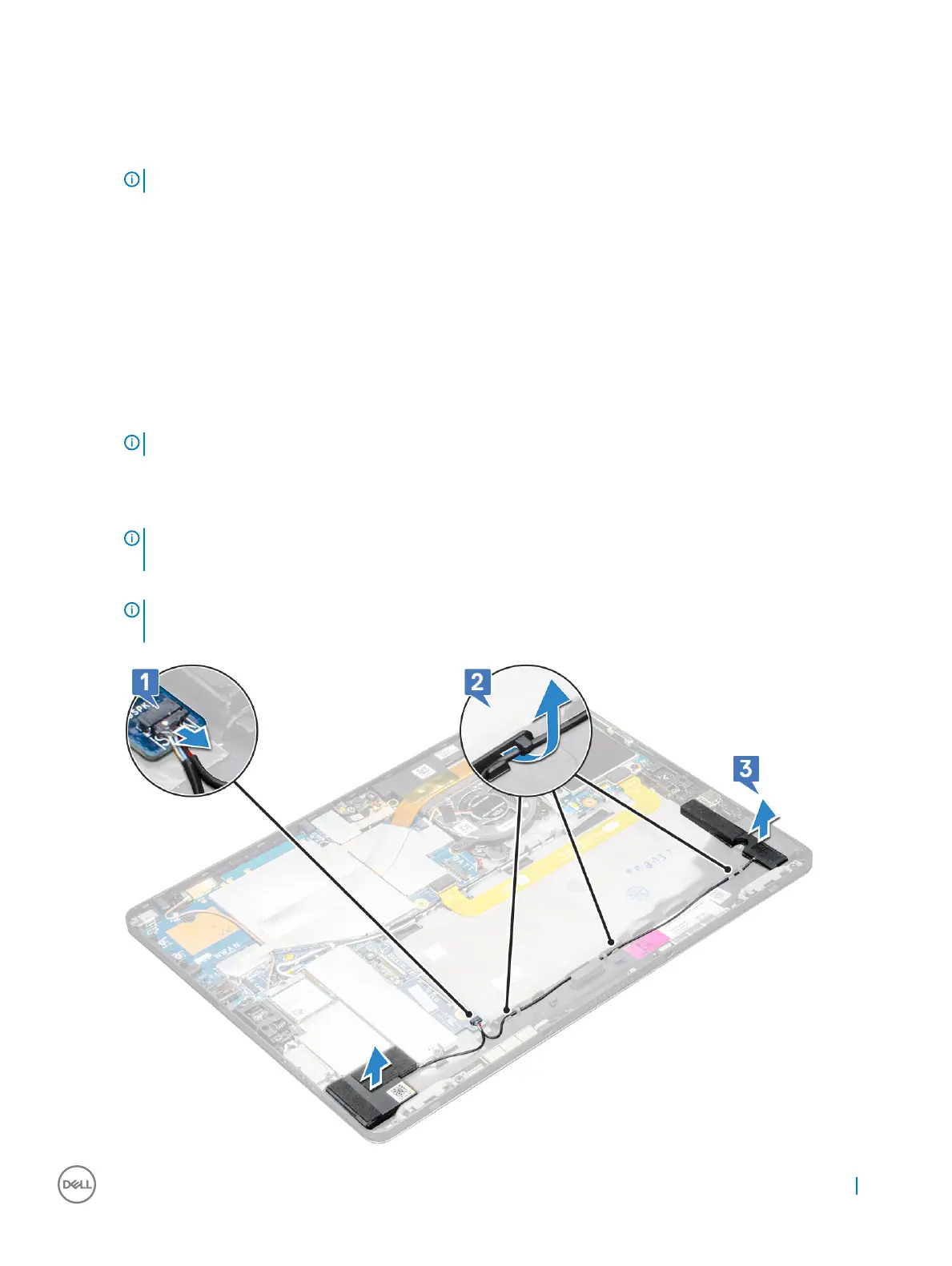

3 To remove the speaker:
a Lift the latch and release the speaker cable from the connector [1].
NOTE
: Ensure to remove the SSD, to create more space to pry o the
speakers.
b Un-route the speaker cable from the routing clips with a plastic scribe [2].
NOTE
: Ensure to remove the M.2 2280 SSD and M.2 2280 SSD shielding cover, to avoid obstruction in un-routing the
speaker cable.
Removing and installing components 17
