Dell Latitude 5290 2-in-1 User Manual

Antenna
Removing the antenna module
1 Follow the procedure in Before working inside your tablet.
2 Remove:
a uSIM and/or microSD card
NOTE: uSIM card slot is available only on tablets shipping with WWAN module.
b display panel
c battery
d front facing camera
e rear facing camera
f system board

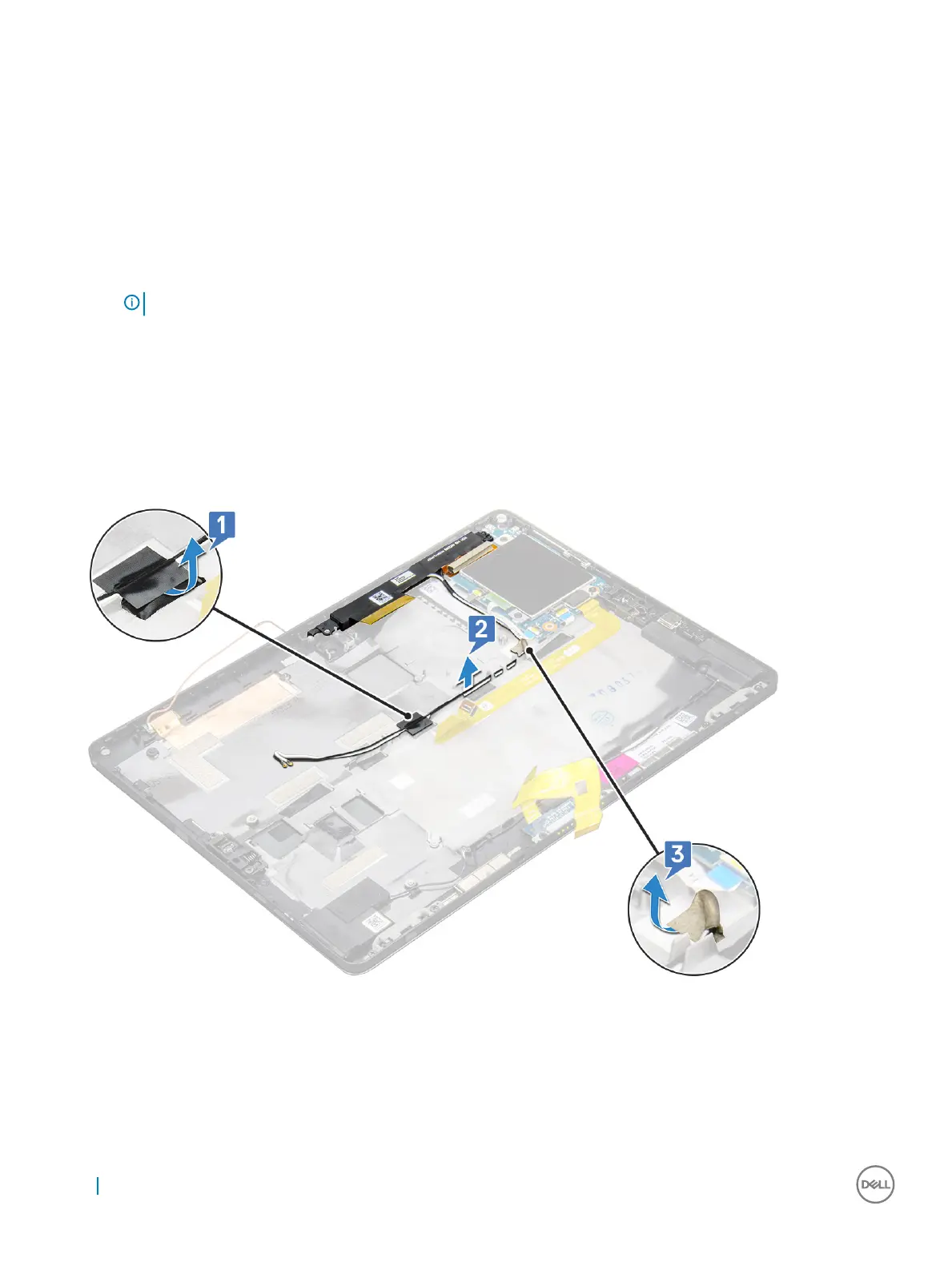

3 To un route the antenna cables of the antenna module:
a Peel the tape that secures the cables to the back cover of the tablet [1].
b Un route the cables from routing channels on the back cover
c Peel the conductive tape that secures the cables [3].
4 To remove the antenna module:
a Remove the M1.6 x 3 screw that secures the antenna module to the back cover of the tablet [1].
b Lift the antenna module from the back cover [2].
