Dell Latitude 5290 2-in-1 User Manual

c battery
d smart card cage
3 To disconnect the cables:

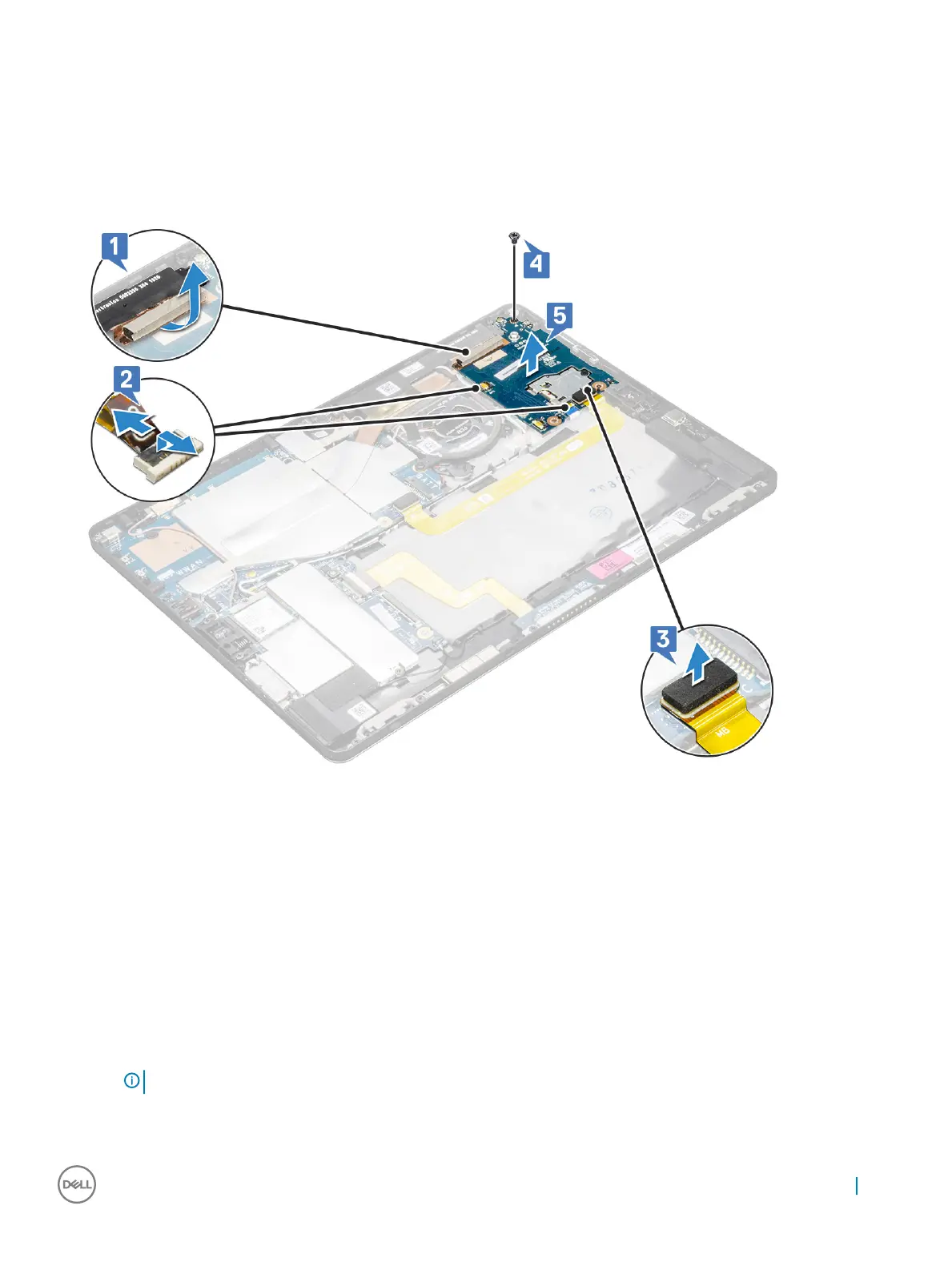

a Lift the shield from the connector on the USH board [1].
b Disconnect the NFC and ngerprint reader cables from the connectors on the USB board [2].
c Disconnect the USH board cable from the connector on the USH board [3]
d Remove the M2.0 x 2.5 screw that secures the USH board [4].
e Lift the USH board from the tablet [5].
Installing the USH board
1 Replace the USB board in the slot on the tablet.
2 Connect the M2.0 x 2.5 screw to secure the USH board
3 Connect the USH board cable to the connector on the USH board.
4 Connect the NFC and the ngerprint reader cables to the connectors on the system board.
5 Replace the shield on the USH board.
6 Install the:
a smart card cage
b battery
c display panel
d uSIM/microSD card
NOTE
: uSIM card is installed only on tablets shipping with WWAN module.
7 Follow the procedure in After working inside your tablet.
Removing and installing components
33

Dell Latitude 5290 2-in-1 Specifications

General

Operating System	Windows 10 Pro
Graphics	Intel UHD Graphics 620
Processor	i7-8650U
RAM	8GB
Storage	256GB SSD
Battery	42 WHr
Camera	Front: 8 MP camera Rear: 5 MP camera
Ports	2 x USB-C
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
