NOTE: uSIM card is installed only on tablets shipping with WWAN module.
7 Follow the procedure in After working inside your tablet.
Rear facing camera
Removing rear camera
1 Follow the procedure in Before working inside your tablet.
2 Remove the:
a uSIM/microSD
NOTE: Micro-SIM card slot is available only on tablets shipping with WWAN module.
b Display panel
c front facing camera

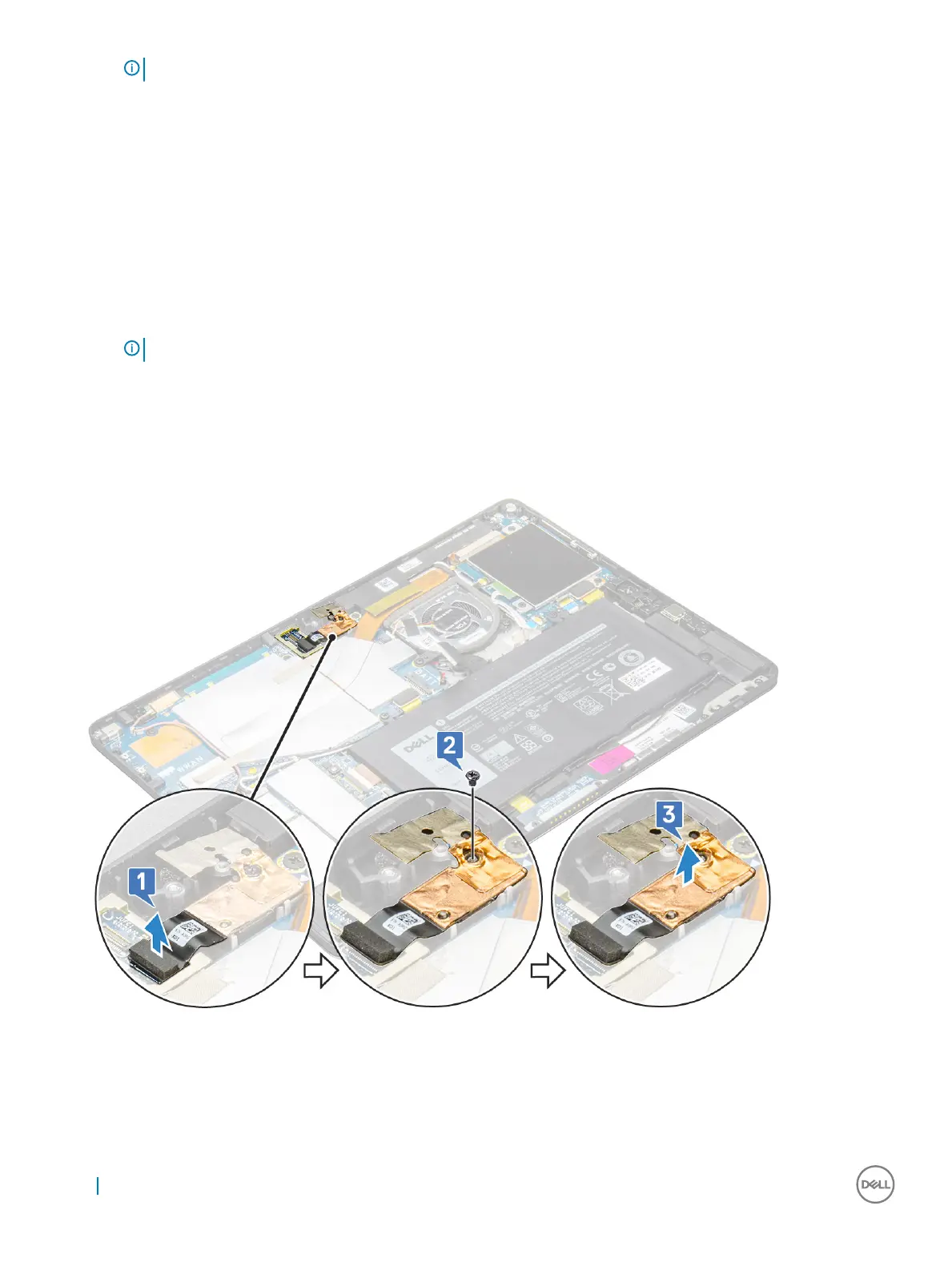

3 To remove the rear camera:
a Disconnect the rear camera cable from the system board [1].
b Remove the M1.6 x 3.0 screw (1) securing the rear camera module [2].
c Lift the camera module from the tablet [3].
Installing the rear camera
1 Insert the rear camera module into the slot on the tablet.
2 Replace the M1.6 x 3.0 screw to secure the rear camera module.
24
Removing and installing components

Dell Latitude 5290 2-in-1 Specifications

General

Operating System	Windows 10 Pro
Graphics	Intel UHD Graphics 620
Processor	i7-8650U
RAM	8GB
Storage	256GB SSD
Battery	42 WHr
Camera	Front: 8 MP camera Rear: 5 MP camera
Ports	2 x USB-C
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
