Dell Latitude 7320 Detachable User Manual

7. Tighten the single captive screw that secures the WLAN card bracket to the system board.
Next steps
1. Install the display assembly.
2. Install the SIM tray.
3. Follow the procedure in After working inside your computer.
Removing the right system fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the display assembly.
About this task

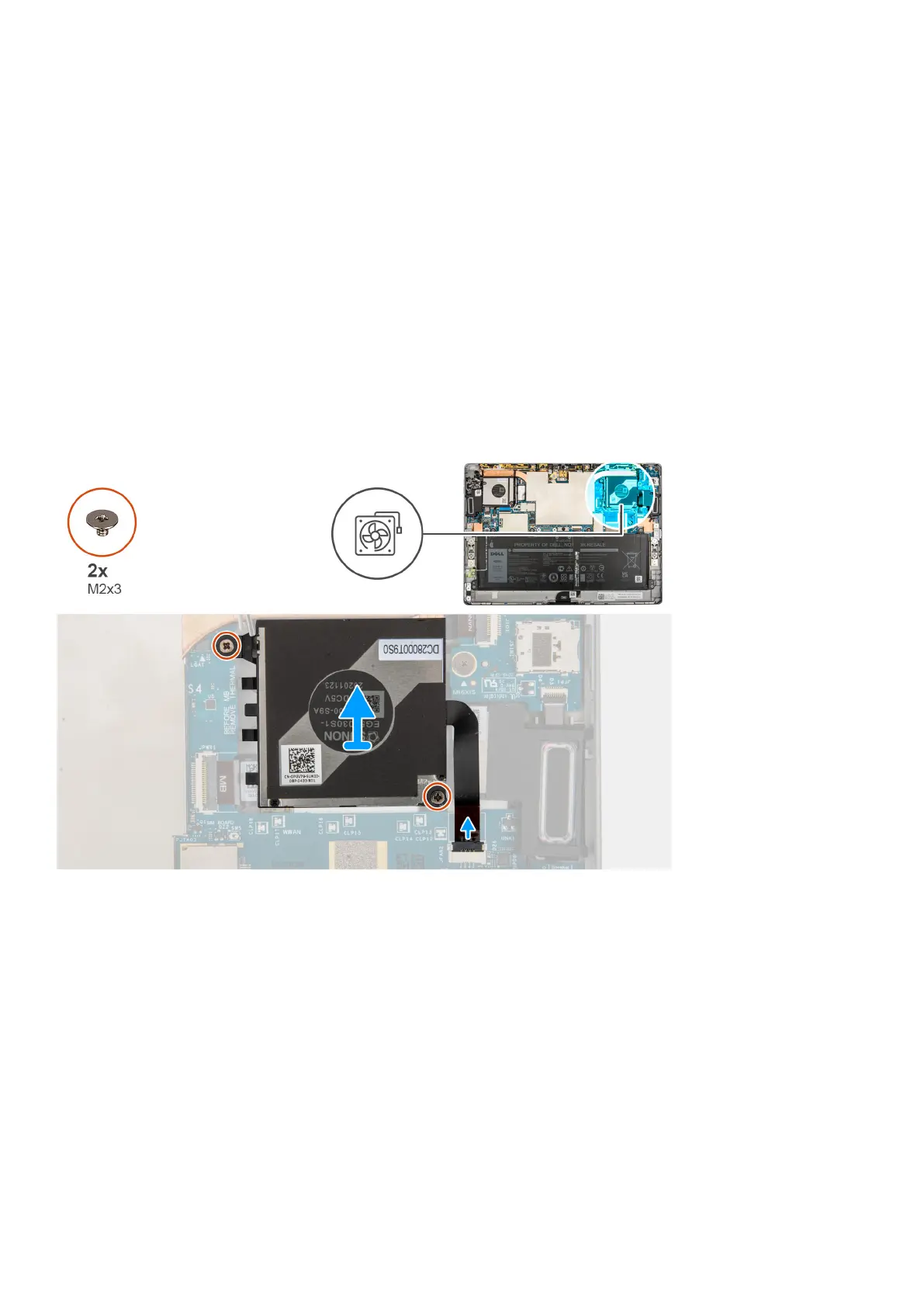

The following images indicate the location of the right system fan and provide a visual representation of the removal procedure.
Steps
1. Remove the two (M2x3) screws that secure the right system fan to the frame.
2. Disconnect the right system fan FPC from the connector on the system board.
3. Lift the right system fan out of the system.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the right fan and provide a visual representation of the installation procedure.
Removing and installing components
49

Dell Latitude 7320 Detachable Specifications

General

Graphics	Intel Iris Xe Graphics
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Display	1920 x 1280
RAM	Up to 16GB LPDDR4x
Storage	Up to 1TB PCIe NVMe SSD
Operating System	Windows 10 Pro, Windows 11 Pro
Battery	40 Whr
Ports	2 x USB Type-C Thunderbolt 4, 1 x Audio Jack
Camera	5MP front camera, 8MP rear camera
Security	Fingerprint Reader, IR Camera for Windows Hello
Processor	11th Gen Intel Core i3/i5/i7
Dimensions	288.4 mm x 207.9 mm x 8.44 mm
