Radio Switch Board: Dell Latitude E4300 Service Manual
file:///C|/Biz%20Client/2015/Lola%20(Defect%20Fix)/radioswb.htm[5/25/2015 11:14:14 AM]
1 radio switch board cable 2 M2 x 3-mm screw
3 radio switch board
Replacing the Radio Switch Board
NOTE: This procedure assumes that you have completed the removal procedure first.
1. Reseat the radio switch board into the plastic cage on the system board.
2. Replace the M2 x 3-mm screw securing the radio switch board to the plastic cage on the system board.
3. Reconnect the radio switchboard cable.
4. Reconnect cables from WLAN, WWAN, and/or Latitude On cards (if installed in your computer) to the radio switch
board.

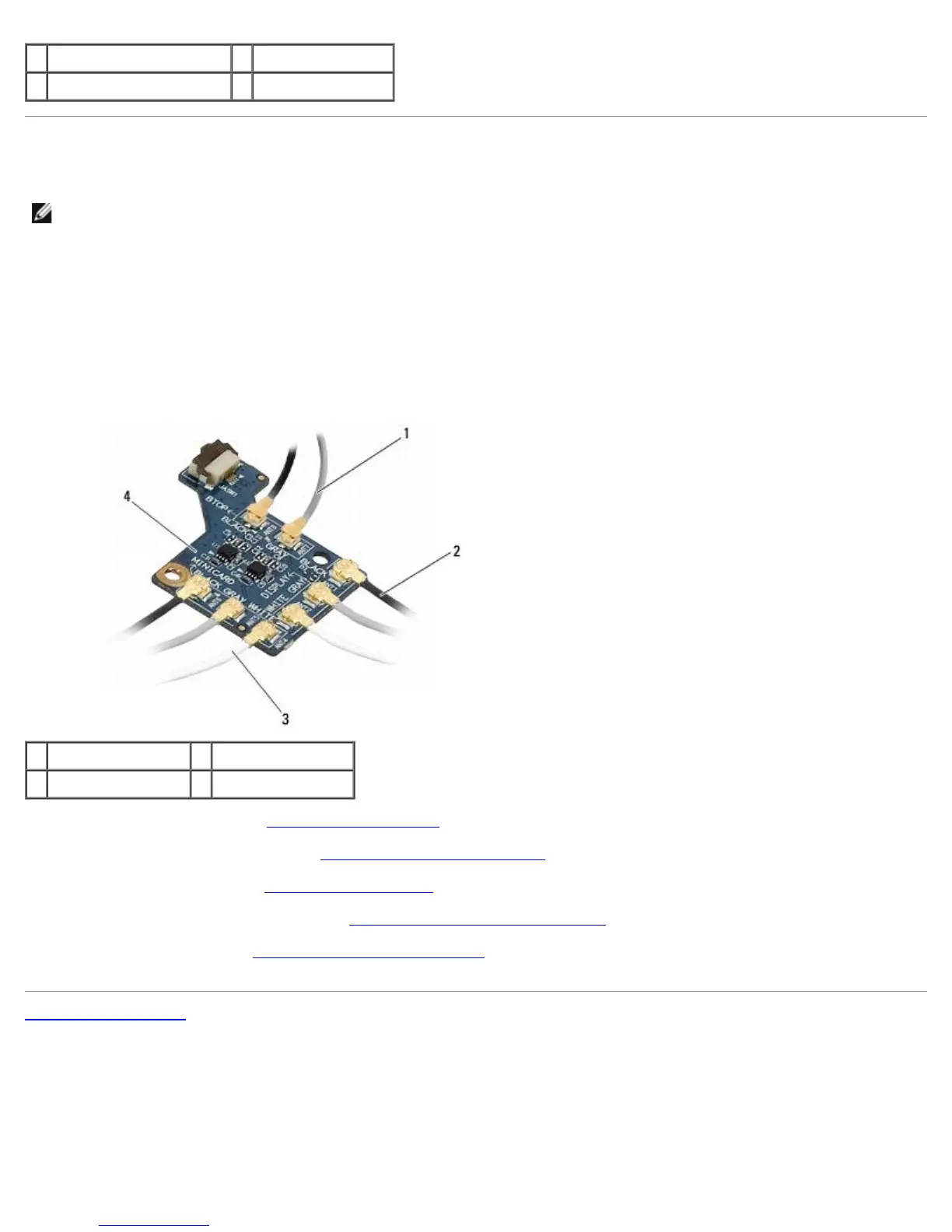

1 Latitude On cables 2 WWAN cables
3 WLAN cables 4 radio switch board
5. Replace the palm rest (see Replacing the Palm Rest
).
6. Replace the display assembly (see Replacing the Display Assembly
).
7. Replace the keyboard (see Replacing the Keyboard
).
8. Replace the LED dashboard cover (see Replacing the LED Dashboard Cover
).
9. Follow the instructions in After Working on Your Computer
.
