Speaker Assembly
Dell™ Latitude™ E4300 Service Manual
Removing the Speaker Assembly
Replacing the Speaker Assembly
Removing the Speaker Assembly
CAUTION: Before working inside the computer, read the safety information that shipped with the
computer. For additional safety best practices information, see the Regulatory Compliance Homepage on
www.dell.com at: www.dell.com/regulatory_compliance.
1. Follow the instructions in What You Need to Know For Your Safety
.
2. Remove the LED dashboard cover (see Removing the LED Dashboard Cover
).
3. Remove the keyboard (see Removing the Keyboard
).
4. Remove the display assembly (see Removing the Display Assembly
).
5. Remove the palm rest (see Removing the Palm Rest
).
NOTICE: Handle the speakers with care to avoid damaging them.
6. Disconnect the speaker cable connector from the system board.
7. Remove the two M2.5 x 4-mm screws from the right speaker and the two M2.5 x 2.3-mm screws from the left speaker.
8. Remove the speaker assembly.

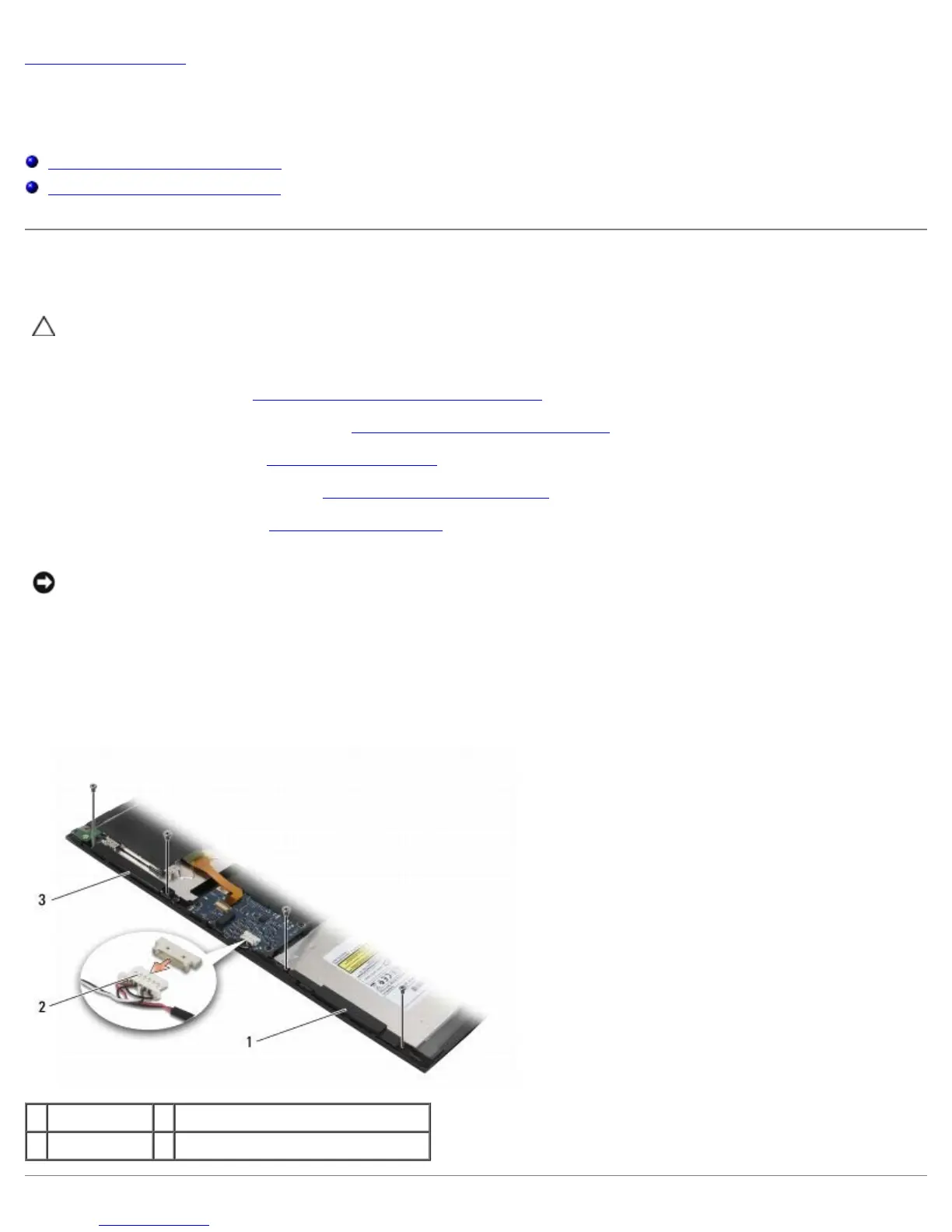

1 right speaker 2 speaker assembly cable connector
3 left speaker
