Processor Thermal-Cooling Assembly
Dell™ Latitude™ E4300 Service Manual
Removing the Processor Thermal-Cooling Assembly
Replacing the Processor Thermal-Cooling Assembly
Removing the Processor Thermal-Cooling Assembly
CAUTION: Before working inside the computer, read the safety information that shipped with the
computer. For additional safety best practices information, see the Regulatory Compliance Homepage on
www.dell.com at: www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as the back panel) on the computer.
1. Follow the instructions in What You Need to Know For Your Safety
.
2. Remove the hard drive (see Removing the Hard Drive
).
3. Remove the LED dashboard cover (see Removing the LED Dashboard Cover
).
4. Remove the keyboard (see Removing the Keyboard
).
5. Remove the display assembly (see Removing the Display Assembly
).
6. Remove the palm rest (see Removing the Palm Rest
).
7. Remove the system fan (see Removing the System Fan
).
8. Remove the optical drive (see Removing the Optical Drive
).
9. Remove the system board (see Removing the System Board Assembly
).
10. Place the system board upside-down on a clean, flat surface.

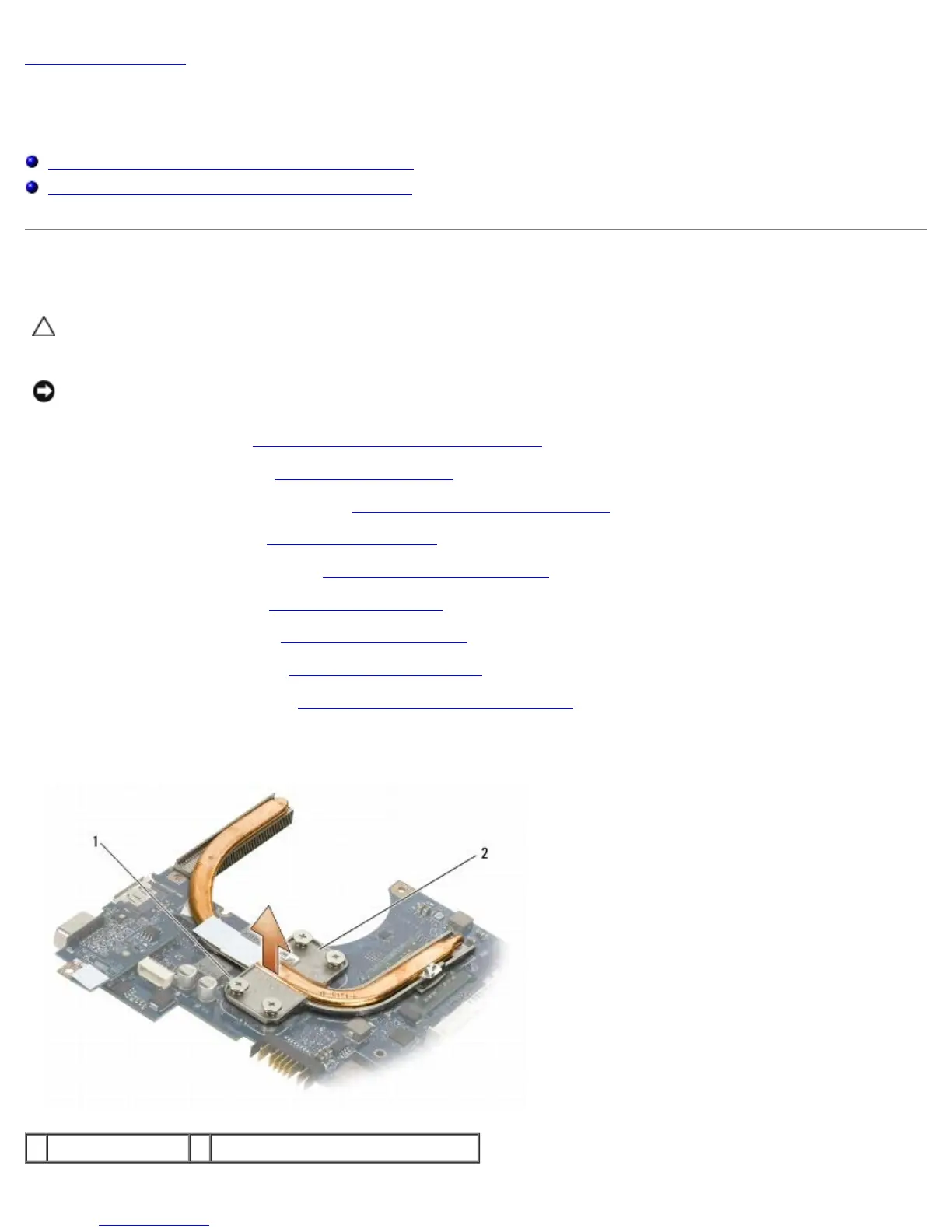

1 captive screws (4) 2 processor thermal-cooling assembly
