DC-In Power Assembly: Dell Latitude E4300 Service Manual
file:///C|/Biz%20Client/2015/Lola%20(Defect%20Fix)/dcpower.htm[5/25/2015 11:14:18 AM]

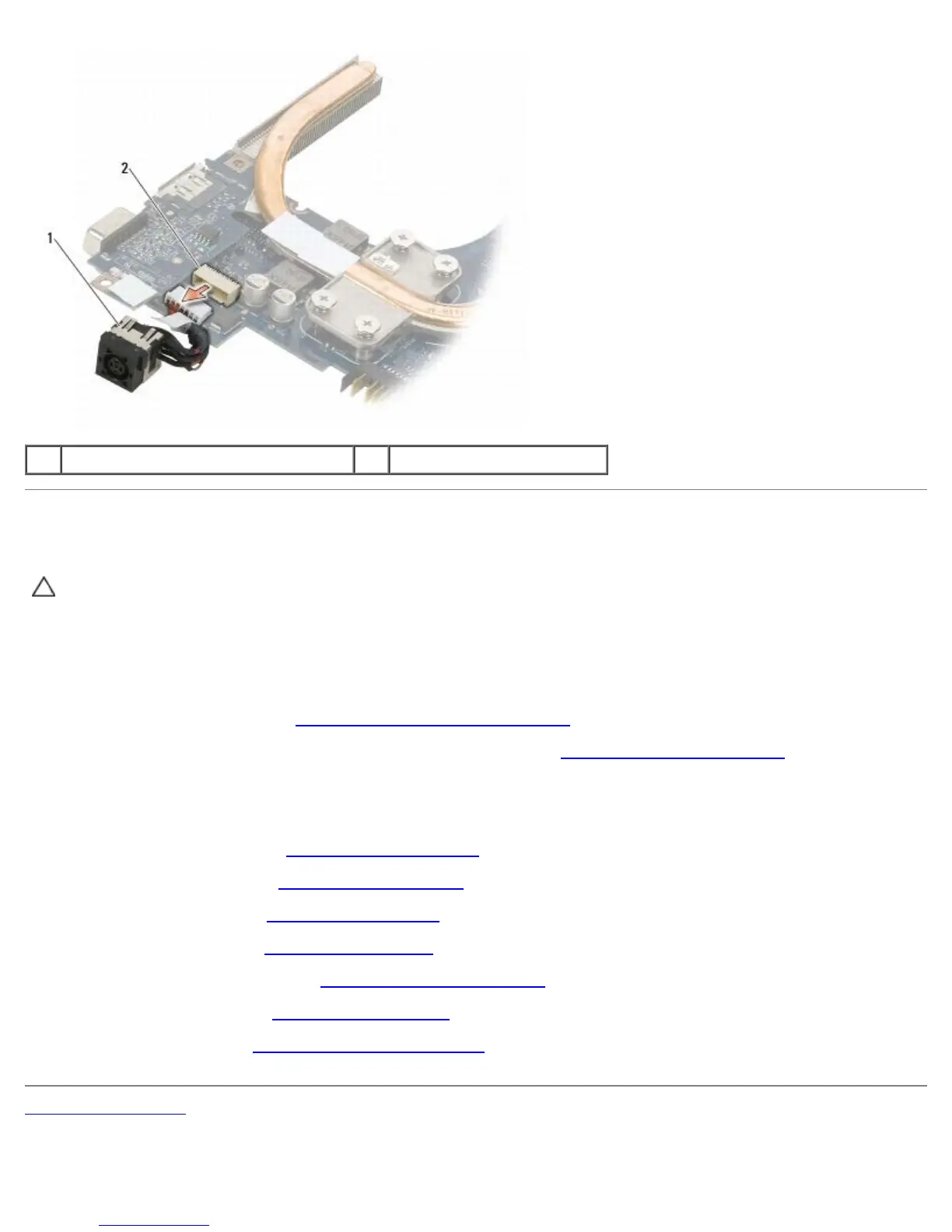

1 DC-in power assembly 2 DC-in connector
Replacing the DC-in Power Assembly
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage on
www.dell.com at: www.dell.com/regulatory_compliance.
1. Position the DC -in power assembly in the computer base, aligning the guides on the connector sides with the base.
2. Reconnect the DC -in power assembly to the connector on the underside of the system board.
3. Replace the system board (see Replacing the System Board Assembly
).
4. Reconnect and reseat the coin-cell battery in the system board (see Replacing the Coin-Cell Battery
).
5. Reconnect the speaker assembly cable.
6. Reconnect the smart card cable.
7. Replace the optical drive (see Replacing the Optical Drive
).
8. Replace the system fan (see Replacing the System Fan
).
9. Replace the palm rest (see Replacing the Palm Rest
).
10. Replace the keyboard (see Replacing the Keyboard
).
11. Replace the display assembly (see Replacing the Display Assembly
).
12. Replace the hard drive (see Replacing the Hard Drive
).
13. Follow the instructions in After Working on Your Computer
.
