Installing the Keyboard
1. Connect the keyboard cable.
2. Affix the mylar tape to the keyboard.
3. Connect the keyboard data cable.
4. Slide the keyboard into its compartment and ensure that it snaps into place.
5. Tighten the screws to secure the keyboard.
6. Flip the computer and tighten the screws at the bottom of the computer.
7. Install the:
a) palmrest
b) cover
c) battery
8. Follow the procedures in
After Working Inside Your Computer
.
Removing the Wireless Local Access Network (WLAN)
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) SD Card
b) ExpressCard
c) battery
d) base cover

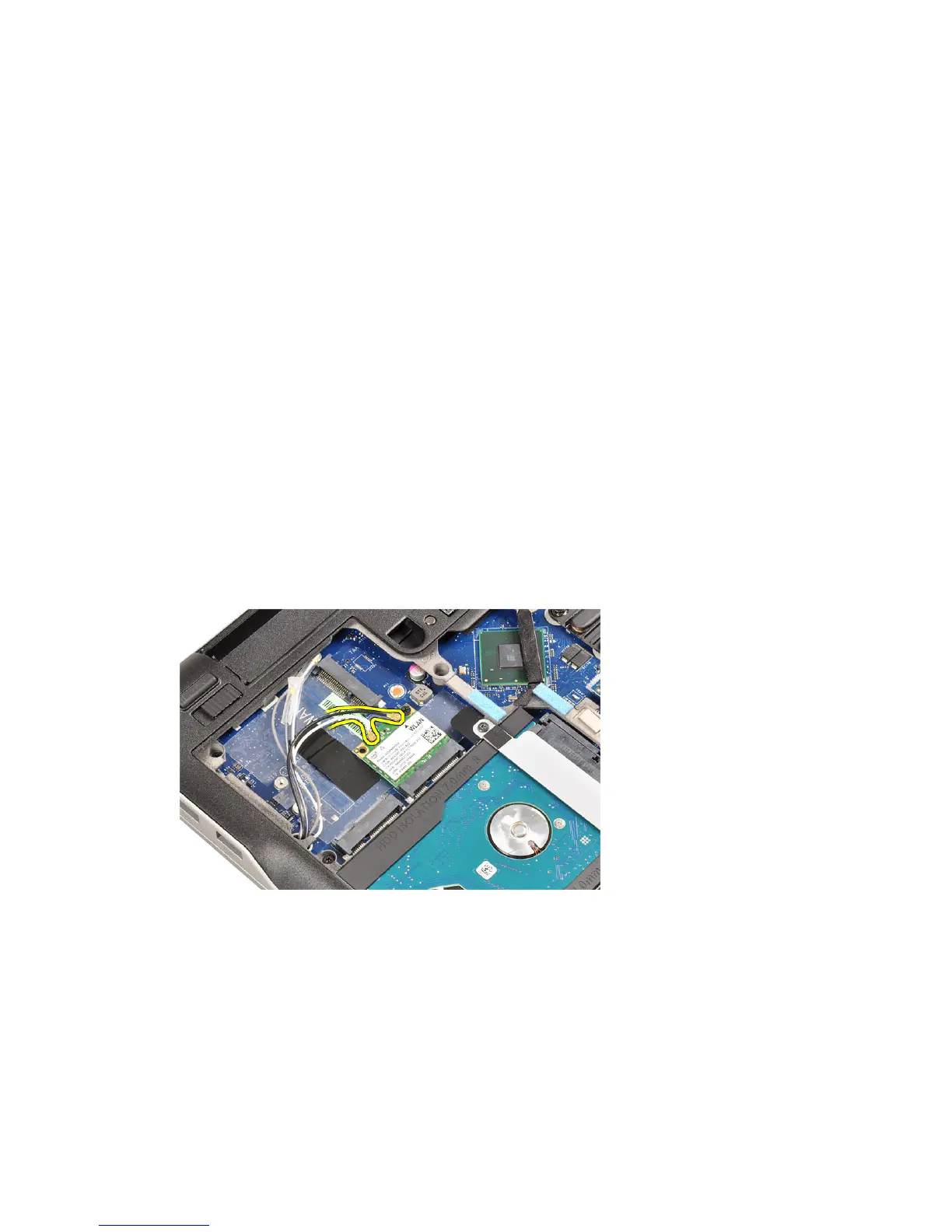

3. Disconnect the antenna cables from the WLAN card by pulling it upwards.
25
