Dell Latitude E6230 - Hall Sensor Procedures

Installing the Chassis Base
1. Align the chassis base to the computer.
2. Tighten the screws to secure the chassis base to the computer.
3. Connect the following cables:
a) hall sensor
b) touchpad
4. Install the:
a) speakers
b) heat-sink fan
c) bluetooth module
d) keyboard
e) palmrest
f) base cover
g) battery
h) ExpressCard
i) SD card
5. Follow the procedures in After Working Inside Your Computer .
Removing the Hall Sensor
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) palmrest
f) keyboard
g) bluetooth module
h) heat-sink fan
i) speakers
j) base chassis

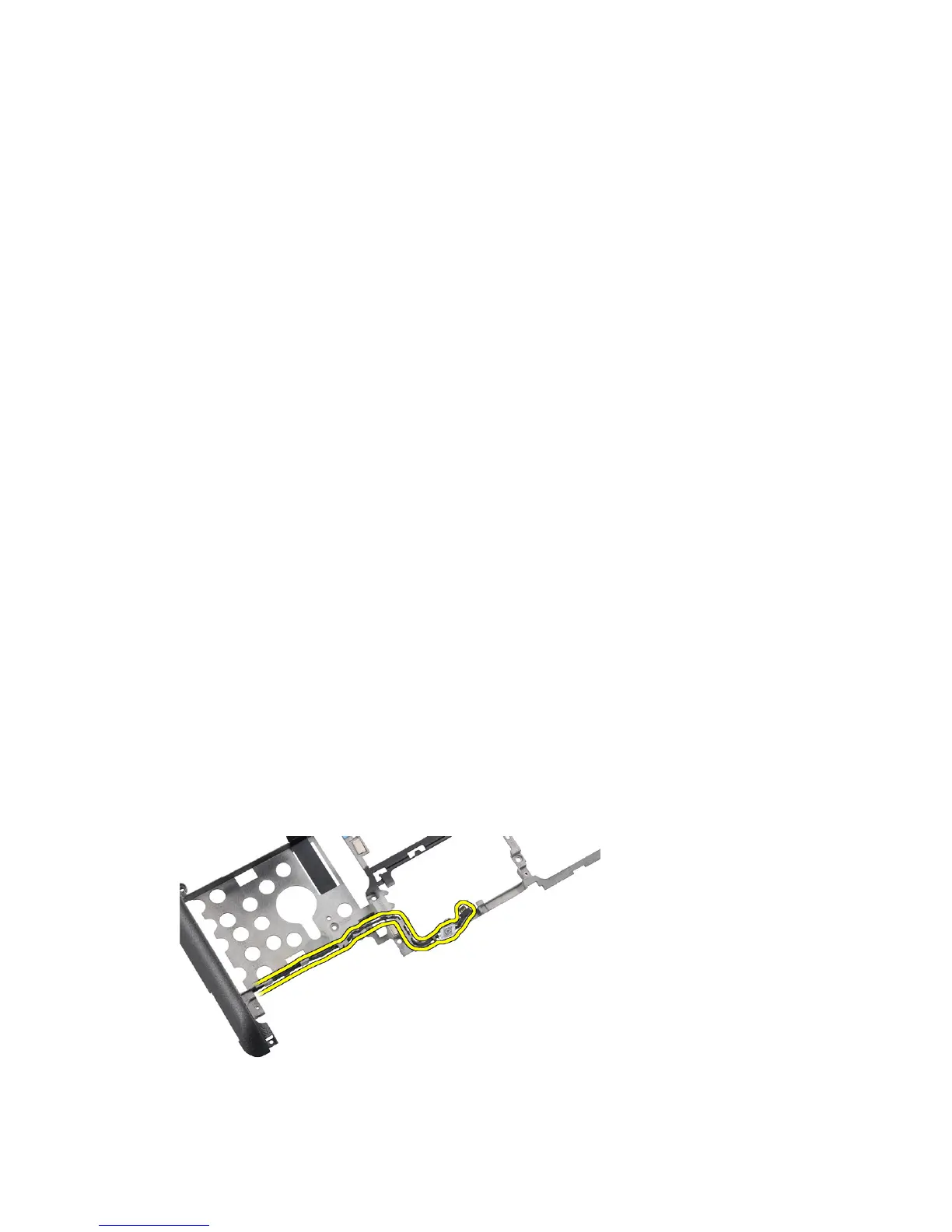

3. Unthread the hall sensor cable from the routing channel.
