Dell Latitude E6230 - ExpressCard Cage Procedures

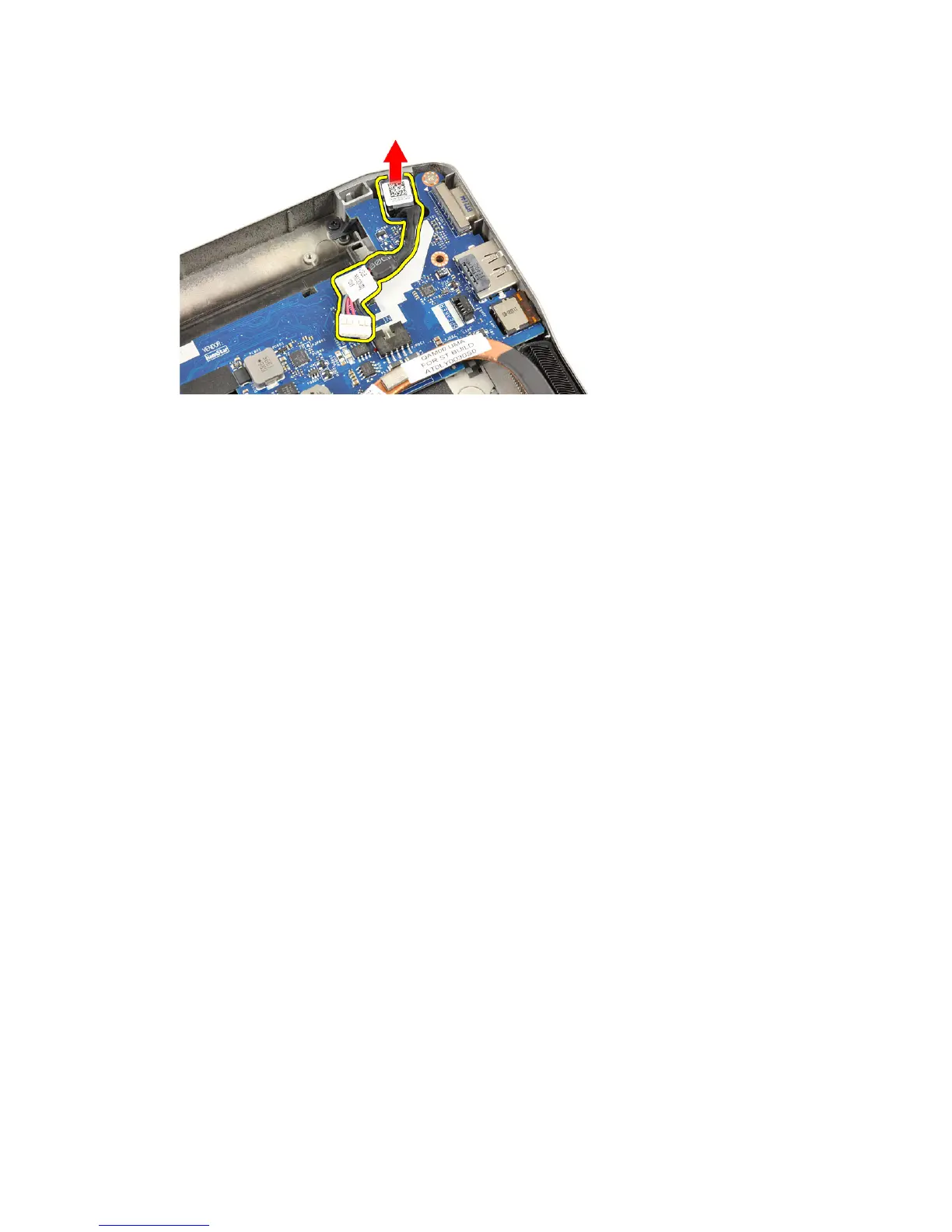

4. Remove the power connector port.
Installing the Power-Connector Port
1. Insert the power-connector port in its slot.
2. Connect the power connector to the system board.
3. Install the:
a) base chassis
b) speakers
c) heat-sink module
d) heat-sink fan
e) bluetooth module
f) keyboard
g) palmrest
h) base cover
i) battery
j) ExpressCard
k) SD card
4. Follow the procedures in After Working Inside Your Computer .
Removing the ExpressCard Cage
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) palmrest
f) keyboard
g) bluetooth module
h) heat sink
i) speakers
j) base chassis
